TLE5014SP16E0002XUMA1

TLE5014SP16E0002XUMA1

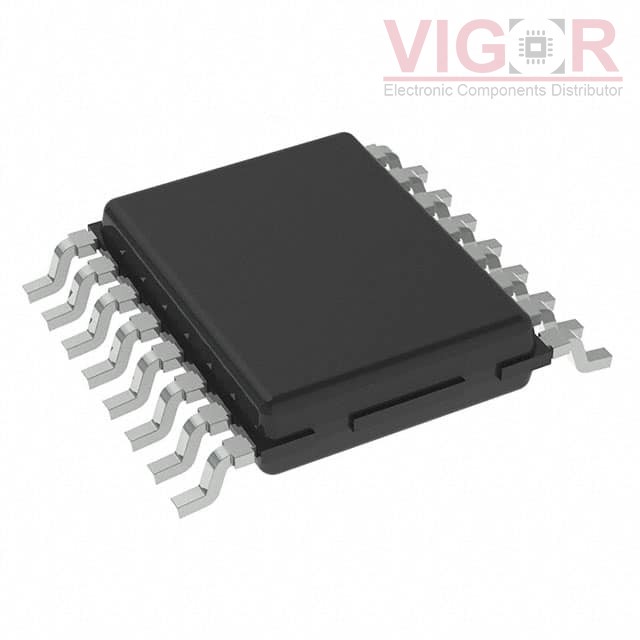

Image is for reference,
please contact us to get the real picture

Part No :

TLE5014SP16E0002XUMA1

Manufacturer
IR (Infineon Technologies)
Description
GMR-BASED ANGLE SENSOR
Catalog
Position Sensors - Angle, Linear Position Measuring
Shipped from
HK warehouse
Expected Shipping Date
Jun 30 - Jul 04 2025
DataSheet
TLE5014SP16E0002XUMA1 PDF
Availability
289 pieces
Unit Price
$7.47000

Current price of TLE5014SP16E0002XUMA1 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

TLE5014SP16E0002XUMA1 Specifications
Type Description
Series:Automotive, AEC-Q100
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
For Measuring:Angle
Technology:Magnetoresistive
Rotation Angle - Electrical, Mechanical:0° ~ 360°, Continuous
Linear Range:-
Output:Wheatstone Bridge
Output Signal:Cosine, Sine
Actuator Type:External Magnet, Not Included
Linearity:-
Resistance:-
Resistance Tolerance:-
Voltage - Supply:3V ~ 5.5V
Mounting Type:Surface Mount
Termination Style:Gull Wing
Operating Temperature:-40°C ~ 125°C (TA)
Package / Case:16-TSSOP (0.154", 3.90mm Width)
Supplier Device Package:PG-TDSO-16-1
