TLE5109A16E2210XUMA1

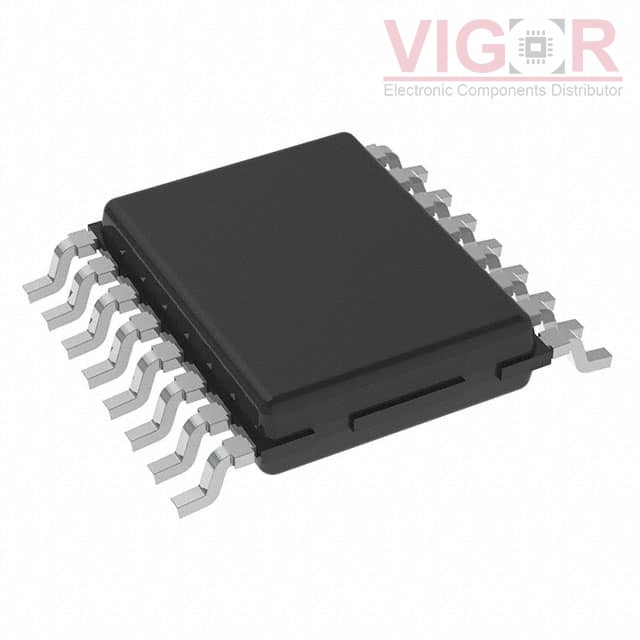

Image is for reference,
please contact us to get the real picture

Part No :: TLE5109A16E2210XUMA1

Manufacturer: IR (Infineon Technologies)

Description: IC ANGLE SENSOR 5.0 V

Catalog: Position Sensors - Angle, Linear Position Measuring

Shipped from: HK warehouse

Expected Shipping Date: Jun 30 - Jul 04 2025

DataSheet: TLE5109A16E2210XUMA1 PDF

Availability: 443 pieces

Unit Price: ~~$6.15000~~

Current price of TLE5109A16E2210XUMA1 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

TLE5109A16E2210XUMA1 Specifications

Type	Description
Series:	Automotive, AEC-Q100
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
For Measuring:	Angle
Technology:	Magnetoresistive
Rotation Angle - Electrical, Mechanical:	0° ~ 180°
Linear Range:	-
Output:	Analog Voltage
Output Signal:	Cosine, Sine
Actuator Type:	External Magnet, Not Included
Linearity:	±0.1°
Resistance:	-
Resistance Tolerance:	-
Voltage - Supply:	5V
Mounting Type:	Surface Mount
Termination Style:	Gull Wing
Operating Temperature:	-
Package / Case:	16-TSSOP (0.154", 3.90mm Width)
Supplier Device Package:	PG-TDSO-16-1

Please confirm the specifications of the products when ordering.
