CU103601

CU103601

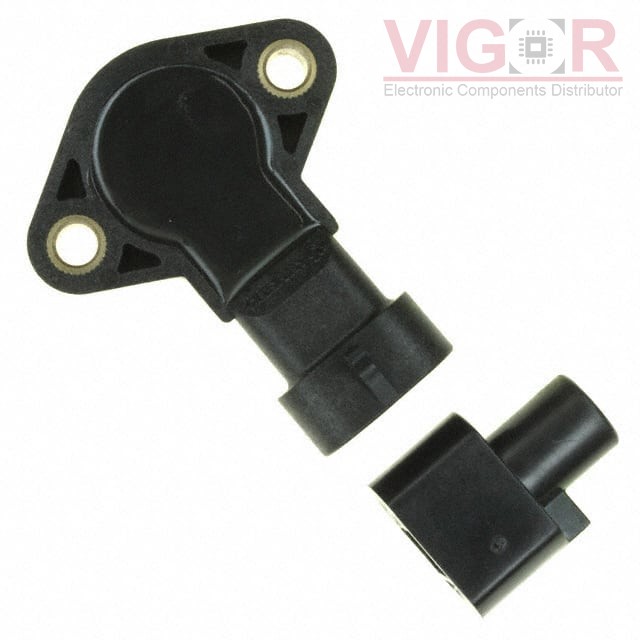

Image is for reference,
please contact us to get the real picture

Part No :

CU103601

Manufacturer
ZF Electronics
Description
SENSOR ANGLE 180DEG CONNECTOR
Catalog
Position Sensors - Angle, Linear Position Measuring
Shipped from
HK warehouse
Expected Shipping Date
Jul 01 - Jul 05 2025
DataSheet
CU103601 PDF
Availability
27 pieces
Unit Price
$54.78000

Current price of CU103601 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

CU103601 Specifications
Type Description
Series:-
Package:Box
Part Status:Active
For Measuring:Angle
Technology:Hall Effect
Rotation Angle - Electrical, Mechanical:0° ~ 180°, Continuous
Linear Range:-
Output:Analog Voltage
Output Signal:Clockwise Increase
Actuator Type:External Magnet, Included
Linearity:±3.5%
Resistance:-
Resistance Tolerance:-
Voltage - Supply:5V
Mounting Type:Chassis Mount
Termination Style:Connector
Operating Temperature:-40°C ~ 125°C
Package / Case:Box with Connector
Supplier Device Package:-
