TLE5109A16E1210XUMA1

TLE5109A16E1210XUMA1

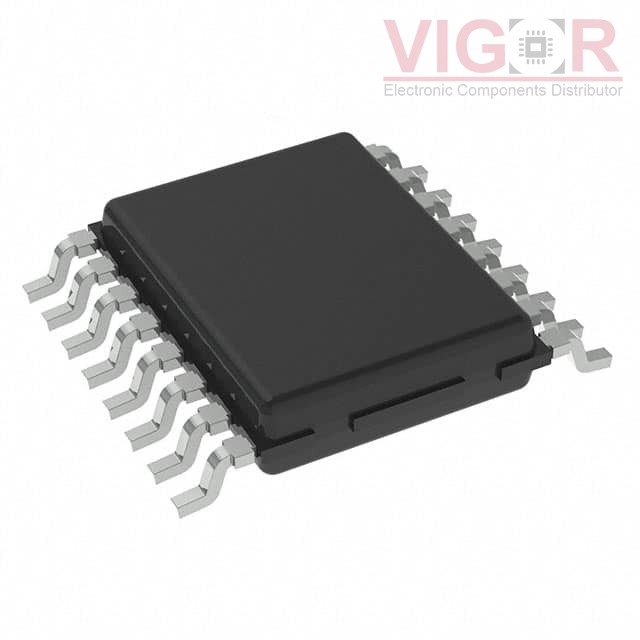

Image is for reference,
please contact us to get the real picture

Part No :

TLE5109A16E1210XUMA1

Manufacturer
IR (Infineon Technologies)
Description
IC ANGLE SENSOR 3.3 V
Catalog
Position Sensors - Angle, Linear Position Measuring
Shipped from
HK warehouse
Expected Shipping Date
Jul 04 - Jul 08 2025
DataSheet
TLE5109A16E1210XUMA1 PDF
Availability
348 pieces
Unit Price
$6.15000

Current price of TLE5109A16E1210XUMA1 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

TLE5109A16E1210XUMA1 Specifications
Type Description
Series:Automotive, AEC-Q100
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
For Measuring:Angle
Technology:Magnetoresistive
Rotation Angle - Electrical, Mechanical:0° ~ 180°
Linear Range:-
Output:Analog Voltage
Output Signal:Cosine, Sine
Actuator Type:External Magnet, Not Included
Linearity:±0.1°
Resistance:-
Resistance Tolerance:-
Voltage - Supply:3.3V
Mounting Type:Surface Mount
Termination Style:Gull Wing
Operating Temperature:-
Package / Case:16-TSSOP (0.154", 3.90mm Width)
Supplier Device Package:PG-TDSO-16-1
