AMS22B5A1BLASL103N

AMS22B5A1BLASL103N

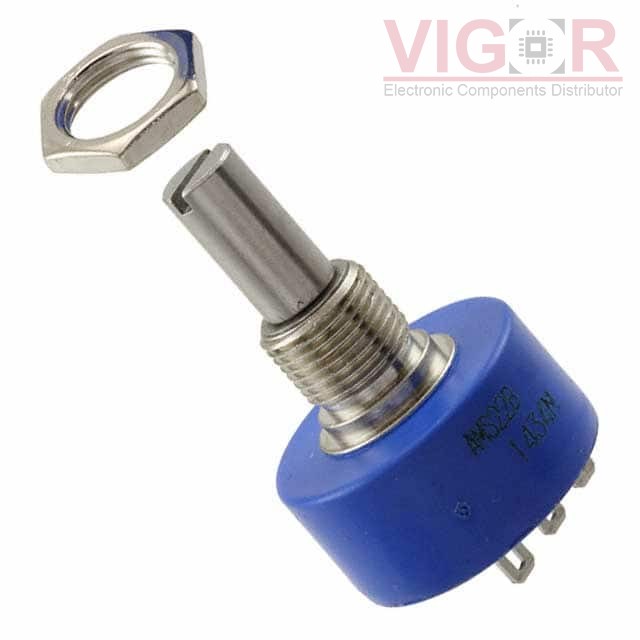

Image is for reference,
please contact us to get the real picture

Part No :

AMS22B5A1BLASL103N

Manufacturer
J.W. Miller / Bourns
Description
SENSOR ROTARY 30DEG SOLDER LUG
Catalog
Position Sensors - Angle, Linear Position Measuring
Shipped from
HK warehouse
Expected Shipping Date
Jul 29 - Aug 02 2025
DataSheet
AMS22B5A1BLASL103N PDF
Availability
0 pieces
Unit Price
$39.60000

Current price of AMS22B5A1BLASL103N is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

AMS22B5A1BLASL103N Specifications
Type Description
Series:AMS22B
Package:Bulk
Part Status:Active
For Measuring:Rotary Position
Technology:Hall Effect
Rotation Angle - Electrical, Mechanical:10° ~ 30°, Continuous
Linear Range:-
Output:Analog Voltage
Output Signal:Clockwise Increase
Actuator Type:Slotted Shaft
Linearity:±0.5%
Resistance:-
Resistance Tolerance:-
Voltage - Supply:5V
Mounting Type:Panel Mount
Termination Style:Solder Lug
Operating Temperature:-40°C ~ 125°C
Package / Case:Module, Slotted Shaft
Supplier Device Package:-
