IPC0053-S

IPC0053-S

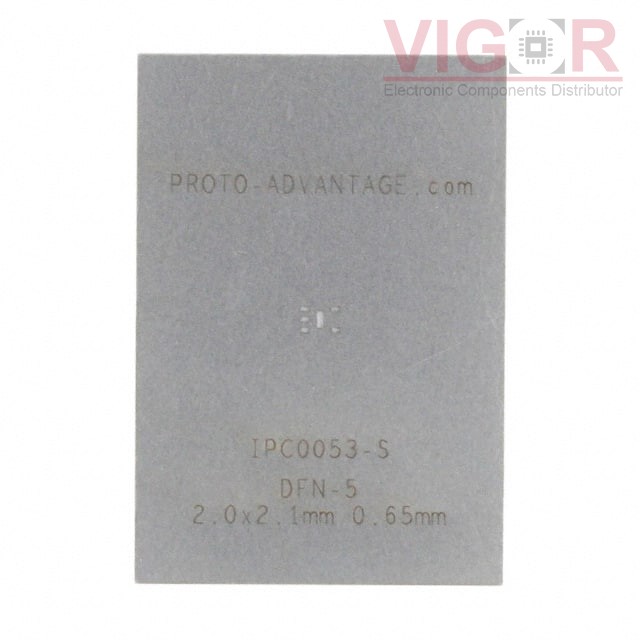

Image is for reference,
please contact us to get the real picture

Part No :

IPC0053-S

Manufacturer
Chip Quik, Inc.
Description
DFN-5 STENCIL
Catalog
Solder Stencils, Templates
Shipped from
HK warehouse
Expected Shipping Date
May 21 - May 25 2024
DataSheet
IPC0053-S PDF
Availability
0 pieces
Unit Price
$11.59000

Due to the large price fluctuation in 2021-2022, please send an inquiry to get the latest quotation, The current price of IPC0053-S is for reference only, if you want to get the best price, please submit an inquiry or email directly to our sales team [email protected]

IPC0053-S Specifications
Type Description
Series:Proto-Advantage IPC
Package:Bulk
Part Status:Active
Type:DFN
Number of Positions:5
Pitch:0.026" (0.65mm)
Outer Dimension:1.300" L x 0.900" W (33.02mm x 22.86mm)
Inner Dimension:0.083" L x 0.079" W (2.10mm x 2.00mm)
Thermal Center Pad:0.053" L x 0.026" W (1.35mm x 0.65mm)
Material:Stainless Steel
