Due to the large price fluctuation in 2021-2022, please send an inquiry to get the latest quotation, The current price of 210-6MSFD is for reference only, if you want to get the best price, please submit an inquiry or email directly to our sales team [email protected]

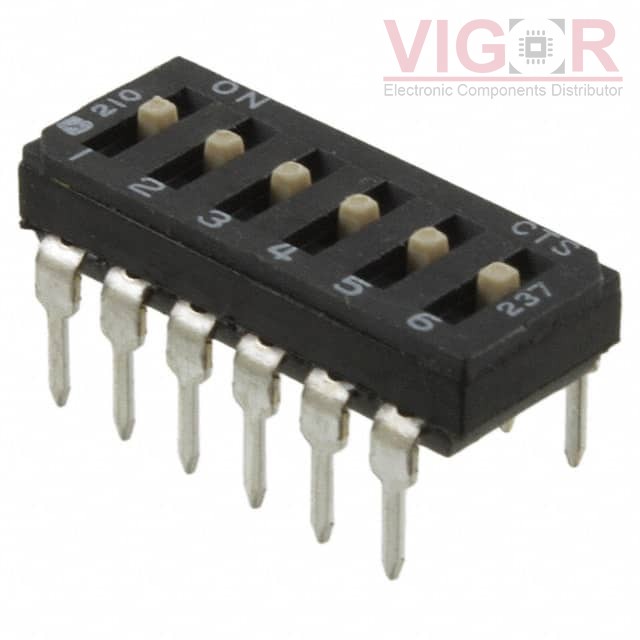

Type | Description |
---|---|
Series: | 210 |
Package: | Tube |
Part Status: | Active |
Circuit: | SPST |
Number of Positions: | 6 |
Current Rating (Amps): | 100mA |
Voltage Rating: | 20VDC |
Actuator Type: | Slide (Standard) |
Actuator Level: | Raised |
Contact Material: | Beryllium Copper |
Contact Finish: | Gold |
Height Above Board: | 0.190" (4.83mm) |
Mounting Type: | Through Hole |
Termination Style: | PC Pin |
Pitch: | 0.100" (2.54mm), Full |
Washable: | No |
Features: | Epoxy Sealed Terminals |
Operating Temperature: | -40°C ~ 85°C |
