EDS12SNNNTU04Q

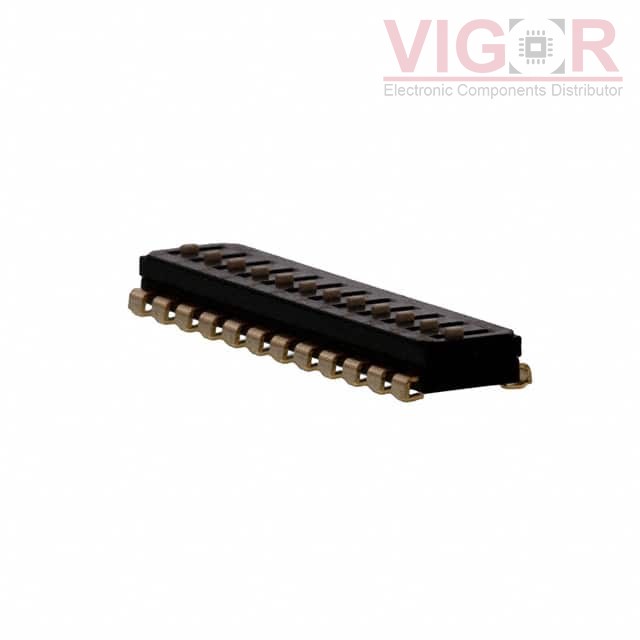

Image is for reference,
please contact us to get the real picture

Part No :: EDS12SNNNTU04Q

Manufacturer: TE Connectivity ALCOSWITCH Switches

Description: END STACK DIP 12P J RAISED TUBE

Catalog: DIP Switches

Shipped from: HK warehouse

Expected Shipping Date: Jul 20 - Jul 24 2025

DataSheet: EDS12SNNNTU04Q PDF

Availability: 904 pieces

Unit Price: ~~$2.52000~~

Current price of EDS12SNNNTU04Q is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

EDS12SNNNTU04Q Specifications

Type	Description
Series:	EDS
Package:	Tube
Part Status:	Active
Circuit:	SPST
Number of Positions:	12
Current Rating (Amps):	25mA
Voltage Rating:	24VDC
Actuator Type:	Slide (Standard)
Actuator Level:	Raised
Contact Material:	Copper Alloy
Contact Finish:	Gold
Height Above Board:	0.152" (3.85mm)
Mounting Type:	Surface Mount
Termination Style:	J Lead
Pitch:	0.100" (2.54mm), Full
Washable:	No
Features:	-
Operating Temperature:	-20°C ~ 85°C

Please confirm the specifications of the products when ordering.
