BY01AFJC03LQ22

BY01AFJC03LQ22

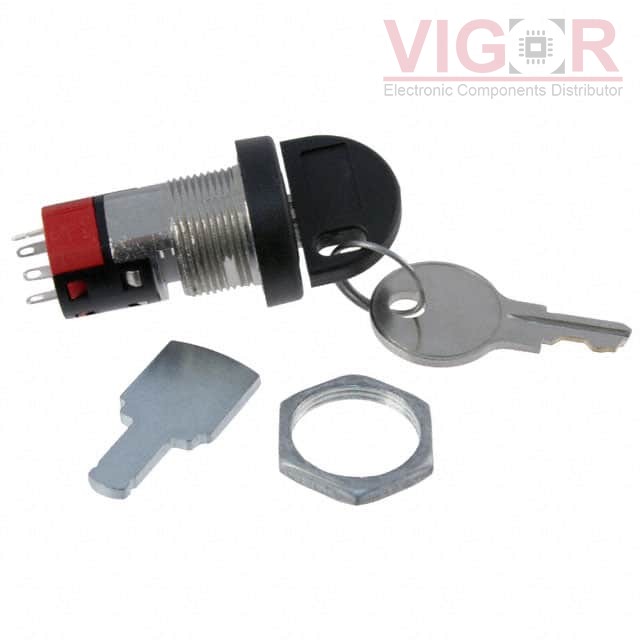

Image is for reference,
please contact us to get the real picture

Part No :

BY01AFJC03LQ22

Manufacturer
C&K
Description
SWITCH KEYLOCK 3POS SP3T 4A 125V
Catalog
Keylock Switches
Shipped from
HK warehouse
Expected Shipping Date
Jul 09 - Jul 13 2025
DataSheet
BY01AFJC03LQ22 PDF
Availability
0 pieces
Unit Price
$0.00000

Current price of BY01AFJC03LQ22 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

BY01AFJC03LQ22 Specifications
Type Description
Series:BY
Package:Tray
Part Status:Obsolete
Circuit:SP3T
Number of Positions:3
Switch Function:On-On-On
Contact Timing:Not Specified
Current Rating (Amps):4A (AC/DC)
Voltage Rating - AC:125 V
Voltage Rating - DC:28 V
Actuator Type:Flat Key
Key Removable Positions:All
Angle of Throw:45°
Contact Material:Copper
Contact Finish:Silver
Mounting Type:Panel Mount
Termination Style:Solder Lug
Panel Cutout Dimensions:Circular - 19.30mm Dia
Features:Epoxy Sealed Terminals, Latch Pawl
Operating Temperature:-
