JD7509D

JD7509D

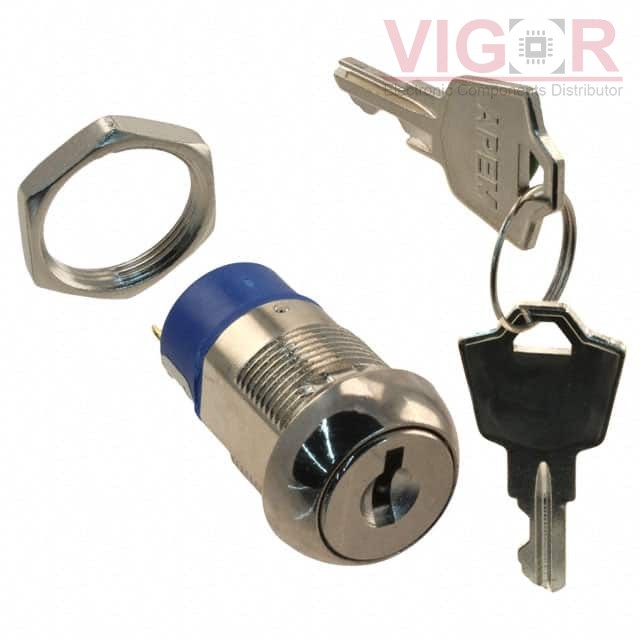

Image is for reference,
please contact us to get the real picture

Part No :

JD7509D

Manufacturer
APEM Inc.
Description
SWITCH KEYLOCK 3POS DP3T 4A 125V
Catalog
Keylock Switches
Shipped from
HK warehouse
Expected Shipping Date
Jul 07 - Jul 11 2025
DataSheet
JD7509D PDF
Availability
0 pieces
Unit Price
$0.00000

Current price of JD7509D is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

JD7509D Specifications
Type Description
Series:JD
Package:Tray
Part Status:Obsolete
Circuit:DP3T
Number of Positions:3
Switch Function:On-On-On
Contact Timing:Not Specified
Current Rating (Amps):4A (AC)
Voltage Rating - AC:125 V
Voltage Rating - DC:-
Actuator Type:Flat Key
Key Removable Positions:3 only
Angle of Throw:45°
Contact Material:Copper Alloy
Contact Finish:Gold
Mounting Type:Panel Mount
Termination Style:Solder Lug
Panel Cutout Dimensions:Circular - 19.00mm Dia
Features:-
Operating Temperature:-30°C ~ 85°C
