MDSM-DTB-10-15

MDSM-DTB-10-15

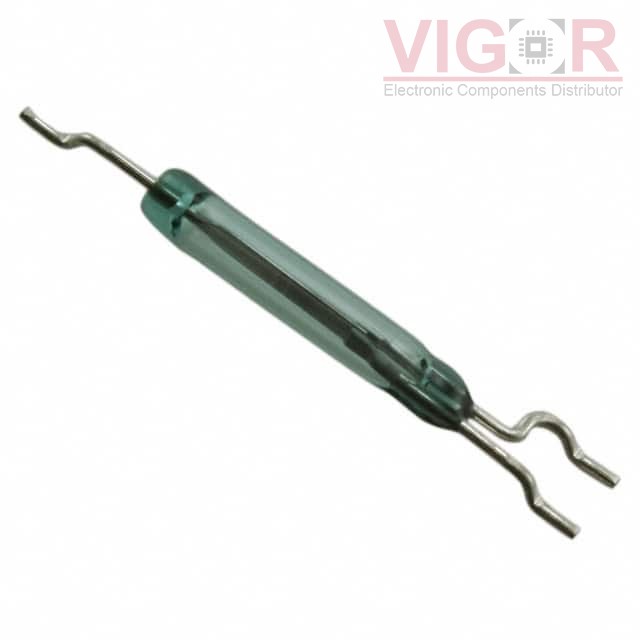

Image is for reference,
please contact us to get the real picture

Part No :

MDSM-DTB-10-15

Manufacturer
Wickmann / Littelfuse
Description
SWITCH REED SPDT 180MA 120V
Catalog
Magnetic, Reed Switches
Shipped from
HK warehouse
Expected Shipping Date
Jul 27 - Jul 31 2025
DataSheet
MDSM-DTB-10-15 PDF
Availability
0 pieces
Unit Price
$4.71000

Current price of MDSM-DTB-10-15 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

MDSM-DTB-10-15 Specifications
Type Description
Series:MDSM-DT
Package:Bulk
Part Status:Active
Type:Glass Body
Circuit:SPDT
Operate Range:10 ~ 15AT
Release Range:-
Current - Switching:180mA (AC), 250mA (DC)
Voltage - Switching AC:120 V
Voltage - Switching DC:175 V
Power - Rated:5W
Operate Time:0.7 ms
Release Time:1 ms
Mounting Type:Surface Mount
Termination Style:Gull Wing
Length - Overall:1.000" (25.40mm)
Size - Body:0.100" Dia x 0.580" L (2.54mm x 14.73mm)
Height Above Board:0.101" (2.56mm)
Operating Temperature:-40°C ~ 125°C
Capacitance:1 pF
Current - Carry:1.5A (DC)
