PMC-1001TH2025

PMC-1001TH2025

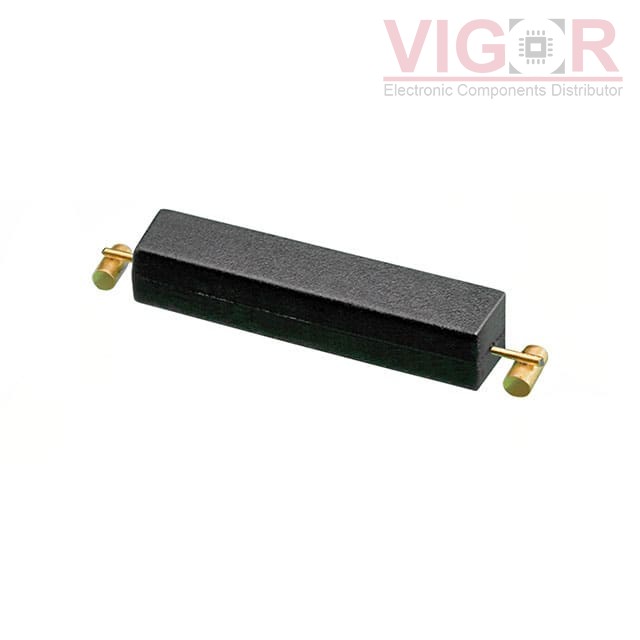

Image is for reference,
please contact us to get the real picture

Part No :

PMC-1001TH2025

Manufacturer
PIC GmbH
Description
STANDARD SMD REED SWITCH PITCH 1
Catalog
Magnetic, Reed Switches
Shipped from
HK warehouse
Expected Shipping Date
Jul 22 - Jul 26 2025
DataSheet
PMC-1001TH2025 PDF
Availability
1661 pieces
Unit Price
$1.53000

Current price of PMC-1001TH2025 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

PMC-1001TH2025 Specifications
Type Description
Series:-
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Type:Molded Body
Circuit:SPST-NO
Operate Range:20 ~ 25AT
Release Range:4AT
Current - Switching:700mA (AC/DC)
Voltage - Switching AC:130 V
Voltage - Switching DC:180 V
Power - Rated:10W
Operate Time:0.5 ms
Release Time:0.3 ms
Mounting Type:Surface Mount
Termination Style:Axial
Length - Overall:0.640" (16.26mm)
Size - Body:0.492" L x 0.114" W x 0.110" H (12.50mm x 2.90mm x 2.80mm)
Height Above Board:-
Operating Temperature:-40°C ~ 125°C
Capacitance:-
Current - Carry:1A (AC/DC)
