MDSM-10R-20-25

MDSM-10R-20-25

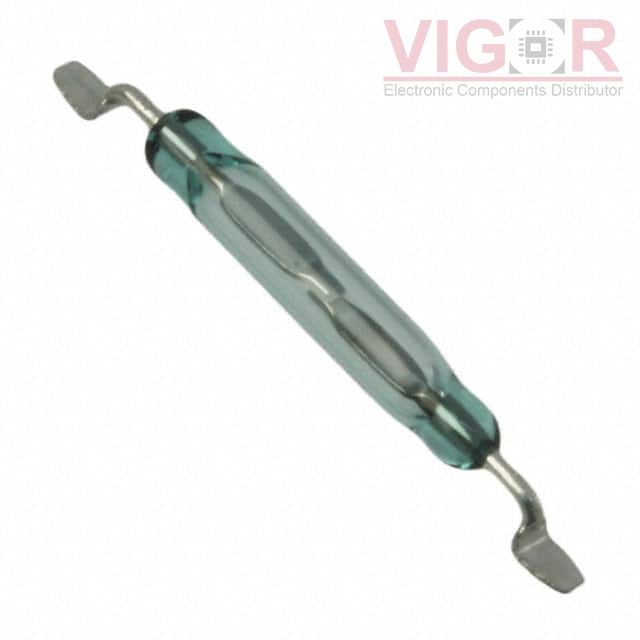

Image is for reference,
please contact us to get the real picture

Part No :

MDSM-10R-20-25

Manufacturer
Wickmann / Littelfuse
Description
SWITCH REED SPST-NO 350MA 140V
Catalog
Magnetic, Reed Switches
Shipped from
HK warehouse
Expected Shipping Date
Jul 20 - Jul 24 2025
DataSheet
MDSM-10R-20-25 PDF
Availability
196 pieces
Unit Price
$1.29000

Current price of MDSM-10R-20-25 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

MDSM-10R-20-25 Specifications
Type Description
Series:MDSM-10
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Type:Glass Body
Circuit:SPST-NO
Operate Range:20 ~ 25AT
Release Range:-
Current - Switching:350mA (AC), 500mA (DC)
Voltage - Switching AC:140 V
Voltage - Switching DC:200 V
Power - Rated:10W
Operate Time:0.5 ms
Release Time:0.1 ms
Mounting Type:Surface Mount
Termination Style:Gull Wing
Length - Overall:0.615" (15.62mm)
Size - Body:0.071" Dia x 0.400" L (1.80mm x 10.16mm)
Height Above Board:0.079" (2.00mm)
Operating Temperature:-40°C ~ 125°C
Capacitance:0.2 pF
Current - Carry:1A (DC)
