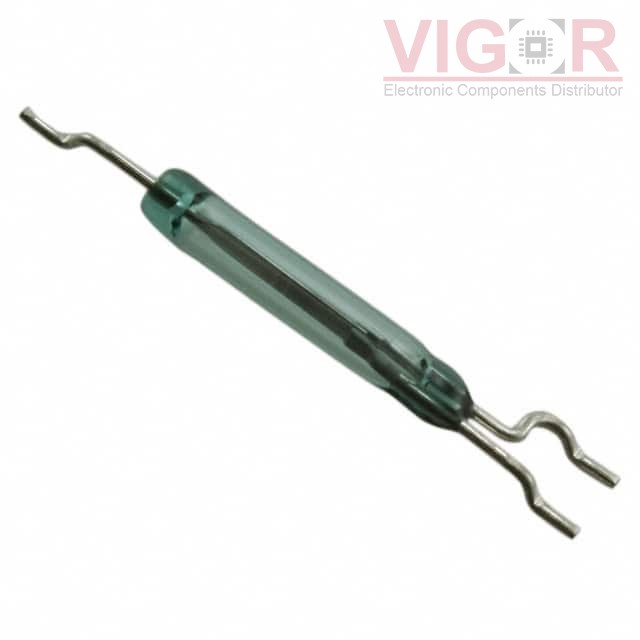

MDSM-DTB-20-30

MDSM-DTB-20-30

Image is for reference,
please contact us to get the real picture

Part No :

MDSM-DTB-20-30

Manufacturer
Wickmann / Littelfuse
Description
SWITCH REED SPDT 180MA 120V
Catalog
Magnetic, Reed Switches
Shipped from
HK warehouse
Expected Shipping Date
Jul 28 - Aug 01 2025
DataSheet
MDSM-DTB-20-30 PDF
Availability
0 pieces
Unit Price
$0.00000

Current price of MDSM-DTB-20-30 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

MDSM-DTB-20-30 Specifications
Type Description
Series:MDSM-DT
Package:Bulk
Part Status:Active
Type:Glass Body
Circuit:SPDT
Operate Range:20 ~ 30AT
Release Range:-
Current - Switching:180mA (AC), 250mA (DC)
Voltage - Switching AC:120 V
Voltage - Switching DC:175 V
Power - Rated:5W
Operate Time:0.7 ms
Release Time:1 ms
Mounting Type:Surface Mount
Termination Style:Gull Wing
Length - Overall:1.000" (25.40mm)
Size - Body:0.100" Dia x 0.580" L (2.54mm x 14.73mm)
Height Above Board:0.101" (2.56mm)
Operating Temperature:-40°C ~ 125°C
Capacitance:1 pF
Current - Carry:1.5A (DC)
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT RI-25C

RI-25C

SWITCH REED SPST-NO 1A 140V
HOT CM15S1015

CM15S1015

SWITCH REED SPST-NO 500MA 200V

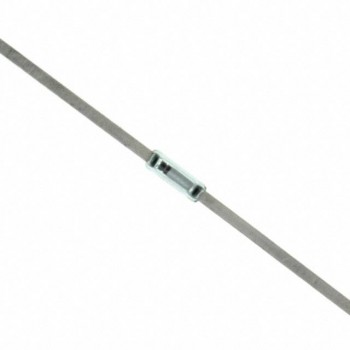

HOT KSK-1A04-1015
