JWL22RAA

JWL22RAA

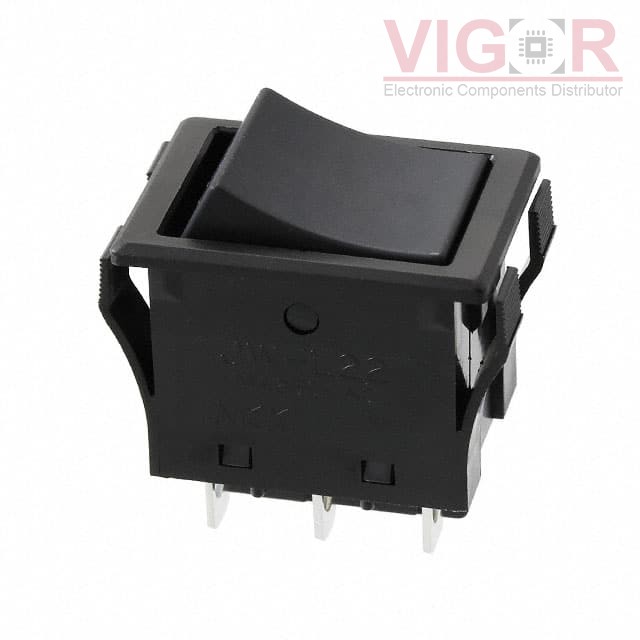

Image is for reference,
please contact us to get the real picture

Part No :

JWL22RAA

Manufacturer
NKK Switches
Description
SWITCH ROCKER DPDT 16A 125V
Catalog
Rocker Switches
Shipped from
HK warehouse
Expected Shipping Date
Jul 19 - Jul 23 2025
DataSheet
JWL22RAA PDF
Availability
70171 pieces
Unit Price
$12.23000

Current price of JWL22RAA is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

JWL22RAA Specifications
Type Description
Series:JW
Package:Bulk
Part Status:Active
Mounting Type:Panel Mount, Snap-In
Circuit:DPDT
Switch Function:On-On
Current Rating (Amps):16A (AC)
Voltage Rating - AC:125 V
Voltage Rating - DC:-
Actuator Type:Concave (Curved)
Color - Actuator/Cap:Black
Actuator Marking:No Marking
Illumination Type, Color:-
Illumination Voltage (Nominal):-
Termination Style:Solder, Quick Connect - 0.187" (4.7mm)
Ingress Protection:Dust Proof
Features:Epoxy Sealed Terminals
Panel Cutout Dimensions:Rectangular - 29.50mm x 20.50mm
Operating Temperature:-25°C ~ 70°C
