M2023TJW01-FG-4A-FF

M2023TJW01-FG-4A-FF

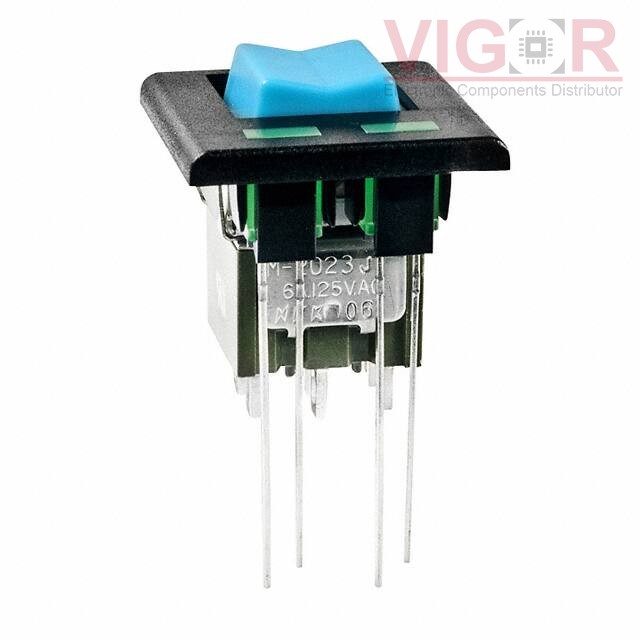

Image is for reference,
please contact us to get the real picture

Part No :

M2023TJW01-FG-4A-FF

Manufacturer
NKK Switches
Description
SWITCH ROCKER DPDT 6A 125V
Catalog
Rocker Switches
Shipped from
HK warehouse
Expected Shipping Date
Jul 27 - Jul 31 2025
DataSheet
M2023TJW01-FG-4A-FF PDF
Availability
34 pieces
Unit Price
$11.31000

Current price of M2023TJW01-FG-4A-FF is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

M2023TJW01-FG-4A-FF Specifications
Type Description
Series:M
Package:Tray
Part Status:Active
Mounting Type:Panel Mount, Snap-In
Circuit:DPDT
Switch Function:On-Off-On
Current Rating (Amps):6A (AC), 3A (DC)
Voltage Rating - AC:125 V
Voltage Rating - DC:30 V
Actuator Type:Concave (Standard V) - Illuminated
Color - Actuator/Cap:Blue
Actuator Marking:No Marking
Illumination Type, Color:LED, Green
Illumination Voltage (Nominal):2.1 VDC
Termination Style:Solder Lug
Ingress Protection:-
Features:Epoxy Sealed Terminals
Panel Cutout Dimensions:Rectangular - 18.70mm x 15.90mm
Operating Temperature:-30°C ~ 85°C
