KMD3CMB8BBBRG2

Image is for reference,
please contact us to get the real picture

Part No :: KMD3CMB8BBBRG2

Manufacturer: ZF Electronics

Description: SWITCH ROCKER DPDT 20A 125V

Catalog: Rocker Switches

Shipped from: HK warehouse

Expected Shipping Date: Jul 28 - Aug 01 2025

DataSheet: KMD3CMB8BBBRG2 PDF

Availability: 216 pieces

Unit Price: ~~$14.78000~~

Current price of KMD3CMB8BBBRG2 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

KMD3CMB8BBBRG2 Specifications

Type	Description
Series:	KM
Package:	Bulk
Part Status:	Active
Mounting Type:	Panel Mount, Snap-In
Circuit:	DPDT
Switch Function:	On-Off-On
Current Rating (Amps):	20A (AC)
Voltage Rating - AC:	125 V
Voltage Rating - DC:	-
Actuator Type:	Flat - Illuminated
Color - Actuator/Cap:	Black
Actuator Marking:	No Marking
Illumination Type, Color:	LED, Red/Green
Illumination Voltage (Nominal):	14 VDC
Termination Style:	Quick Connect - 0.250" (6.3mm)
Ingress Protection:	IP56 - Dust Protected, Water Resistant
Features:	-
Panel Cutout Dimensions:	Rectangular - 36.60mm x 21.20mm
Operating Temperature:	-20°C ~ 85°C

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

Hot Products

HOT

KG312A2KXD24TX

SWITCH ROCKER SPST 15A 12V

HOT

RA901-RB-B-A-N

SWITCH ROCKER SPST 16A 125V

HOT

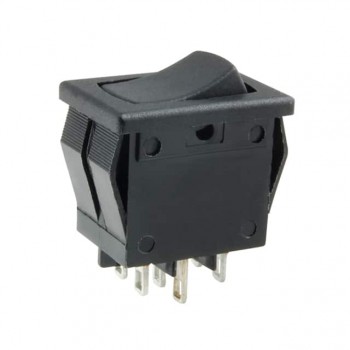

54-078
