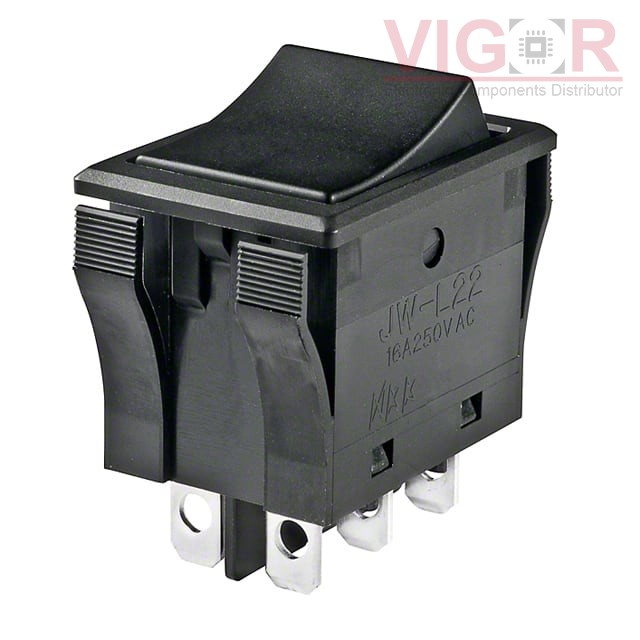

JWL22RAA/UCV

JWL22RAA/UCV

Image is for reference,
please contact us to get the real picture

Part No :

JWL22RAA/UCV

Manufacturer
NKK Switches
Description
SWITCH ROCKER DPDT 16A 125V
Catalog
Rocker Switches
Shipped from
HK warehouse
Expected Shipping Date
Aug 02 - Aug 06 2025
DataSheet
JWL22RAA/UCV PDF
Availability
171 pieces
Unit Price
$13.00000

Current price of JWL22RAA/UCV is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

JWL22RAA/UCV Specifications
Type Description
Series:JW
Package:Bulk
Part Status:Active
Mounting Type:Panel Mount, Snap-In
Circuit:DPDT
Switch Function:On-On
Current Rating (Amps):16A (AC)
Voltage Rating - AC:125 V
Voltage Rating - DC:-
Actuator Type:Concave (Curved)
Color - Actuator/Cap:Black
Actuator Marking:No Marking
Illumination Type, Color:-
Illumination Voltage (Nominal):-
Termination Style:Solder, Quick Connect - 0.187" (4.7mm)
Ingress Protection:Dust Proof
Features:Epoxy Sealed Terminals
Panel Cutout Dimensions:Rectangular - 29.50mm x 20.50mm
Operating Temperature:-25°C ~ 70°C
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products

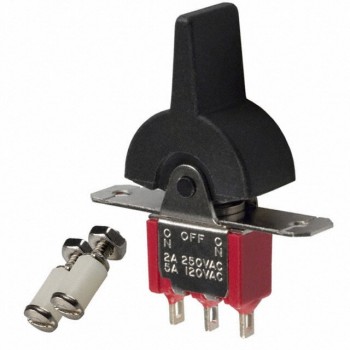

HOT 7105J2ZQE2

7105J2ZQE2

SWITCH ROCKER SPDT 5A 120V

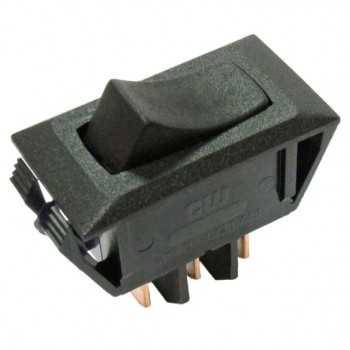

HOT GRS-2012A-2003

GRS-2012A-2003

SWITCH ROCKER SPDT 13A 125V

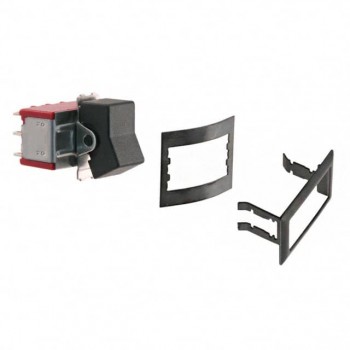

HOT 7401J11ZQE22
