JWM22RAA/UCV

JWM22RAA/UCV

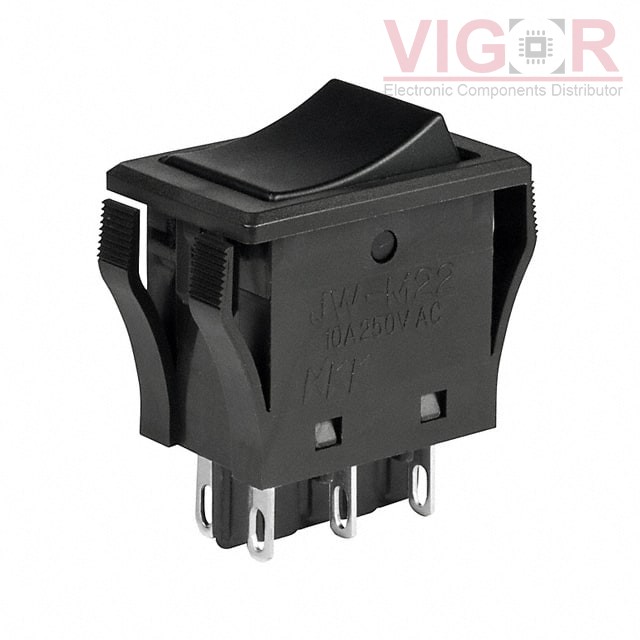

Image is for reference,
please contact us to get the real picture

Part No :

JWM22RAA/UCV

Manufacturer
NKK Switches
Description
SWITCH ROCKER DPDT 10A 125V
Catalog
Rocker Switches
Shipped from
HK warehouse
Expected Shipping Date
Jul 26 - Jul 30 2025
DataSheet
JWM22RAA/UCV PDF
Availability
1212 pieces
Unit Price
$8.94000

Current price of JWM22RAA/UCV is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

JWM22RAA/UCV Specifications
Type Description
Series:JW
Package:Bulk
Part Status:Active
Mounting Type:Panel Mount, Snap-In
Circuit:DPDT
Switch Function:On-On
Current Rating (Amps):10A (AC)
Voltage Rating - AC:125 V
Voltage Rating - DC:-
Actuator Type:Concave (Curved)
Color - Actuator/Cap:Black
Actuator Marking:No Marking
Illumination Type, Color:-
Illumination Voltage (Nominal):-
Termination Style:Solder, Quick Connect - 0.110" (2.8mm)
Ingress Protection:Dust Proof
Features:Epoxy Sealed Terminals
Panel Cutout Dimensions:Rectangular - 24.00mm x 15.40mm
Operating Temperature:-25°C ~ 70°C
