77P36-01-1-05N

77P36-01-1-05N

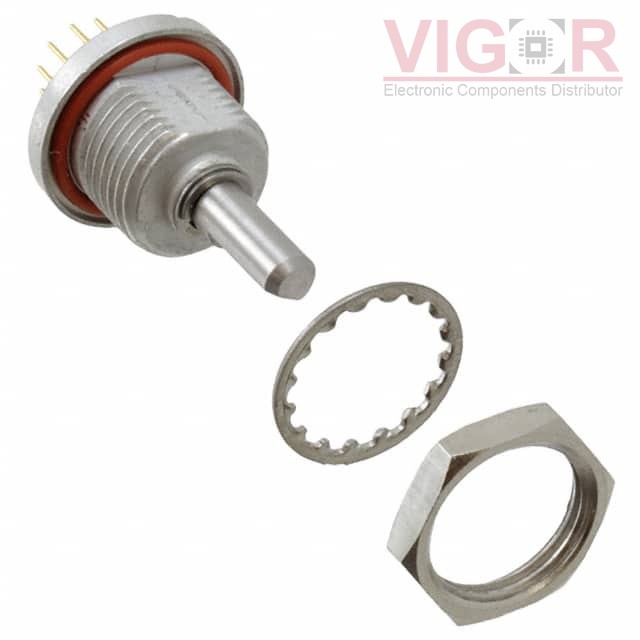

Image is for reference,
please contact us to get the real picture

Part No :

77P36-01-1-05N

Manufacturer
Grayhill, Inc.
Description
SWITCH ROTARY 5POS 50MA 115V
Catalog
Rotary Switches
Shipped from
HK warehouse
Expected Shipping Date
Jul 02 - Jul 06 2025
DataSheet
77P36-01-1-05N PDF
Availability
0 pieces
Unit Price
$24.02480

Current price of 77P36-01-1-05N is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

77P36-01-1-05N Specifications
Type Description
Series:77
Package:Bulk
Part Status:Active
Number of Positions:5
Index Stops:Fixed
Number of Decks:1
Number of Poles per Deck:1
Circuit per Deck:SP5T
Contact Timing:Non-Shorting (BBM)
Current Rating (Amps):50mA (AC), 200mA (DC)
Voltage Rating - AC:115 V
Voltage Rating - DC:28 V
Actuator Type:Flatted (3.17mm Dia)
Actuator Length:7.98mm
Angle of Throw:36°
Contact Material:Silver Cadmium Oxide (AgCdO)
Contact Finish:Gold
Mounting Type:Panel Mount, Through Hole
Termination Style:PC Pin
Features:-
Depth Behind Panel:4.57mm
