R20307RN02Q

R20307RN02Q

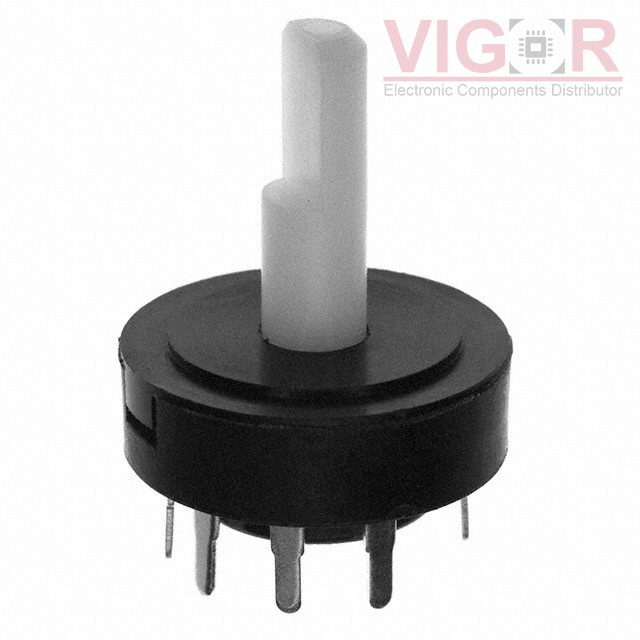

Image is for reference,
please contact us to get the real picture

Part No :

R20307RN02Q

Manufacturer
C&K
Description
SWITCH ROTARY 3POS 5A 125V
Catalog
Rotary Switches
Shipped from
HK warehouse
Expected Shipping Date
Jul 15 - Jul 19 2025
DataSheet
R20307RN02Q PDF
Availability
367 pieces
Unit Price
$5.67000

Current price of R20307RN02Q is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

R20307RN02Q Specifications
Type Description
Series:R
Package:Tube
Part Status:Active
Number of Positions:3
Index Stops:Fixed
Number of Decks:1
Number of Poles per Deck:2
Circuit per Deck:DP3T
Contact Timing:Non-Shorting (BBM)
Current Rating (Amps):5A (AC), 500mA (DC)
Voltage Rating - AC:125 V
Voltage Rating - DC:125 V
Actuator Type:Flatted (6.35mm Dia)
Actuator Length:12.70mm
Angle of Throw:36°
Contact Material:Copper
Contact Finish:Silver
Mounting Type:Through Hole
Termination Style:PC Pin
Features:-
Depth Behind Panel:10.29mm
