75AP36-01-1-04N

75AP36-01-1-04N

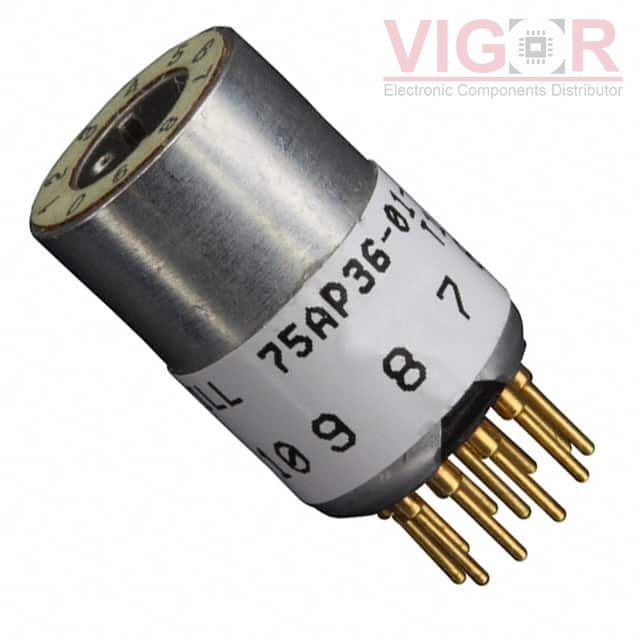

Image is for reference,
please contact us to get the real picture

Part No :

75AP36-01-1-04N

Manufacturer
Grayhill, Inc.
Description
SWITCH ROTARY 4POS 200MA 115V
Catalog
Rotary Switches
Shipped from
HK warehouse
Expected Shipping Date
Jul 05 - Jul 09 2025
DataSheet
75AP36-01-1-04N PDF
Availability
10 pieces
Unit Price
$25.82000

Current price of 75AP36-01-1-04N is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

75AP36-01-1-04N Specifications
Type Description
Series:75
Package:Bulk
Part Status:Active
Number of Positions:4
Index Stops:Fixed
Number of Decks:1
Number of Poles per Deck:1
Circuit per Deck:SP4T
Contact Timing:Non-Shorting (BBM)
Current Rating (Amps):200mA (AC/DC)
Voltage Rating - AC:115 V
Voltage Rating - DC:30 V
Actuator Type:Screwdriver Slot
Actuator Length:Flush
Angle of Throw:36°
Contact Material:Silver Cadmium Oxide (AgCdO)
Contact Finish:Gold
Mounting Type:Through Hole
Termination Style:PC Pin
Features:-
Depth Behind Panel:12.42mm
