A20503RNCGE

A20503RNCGE

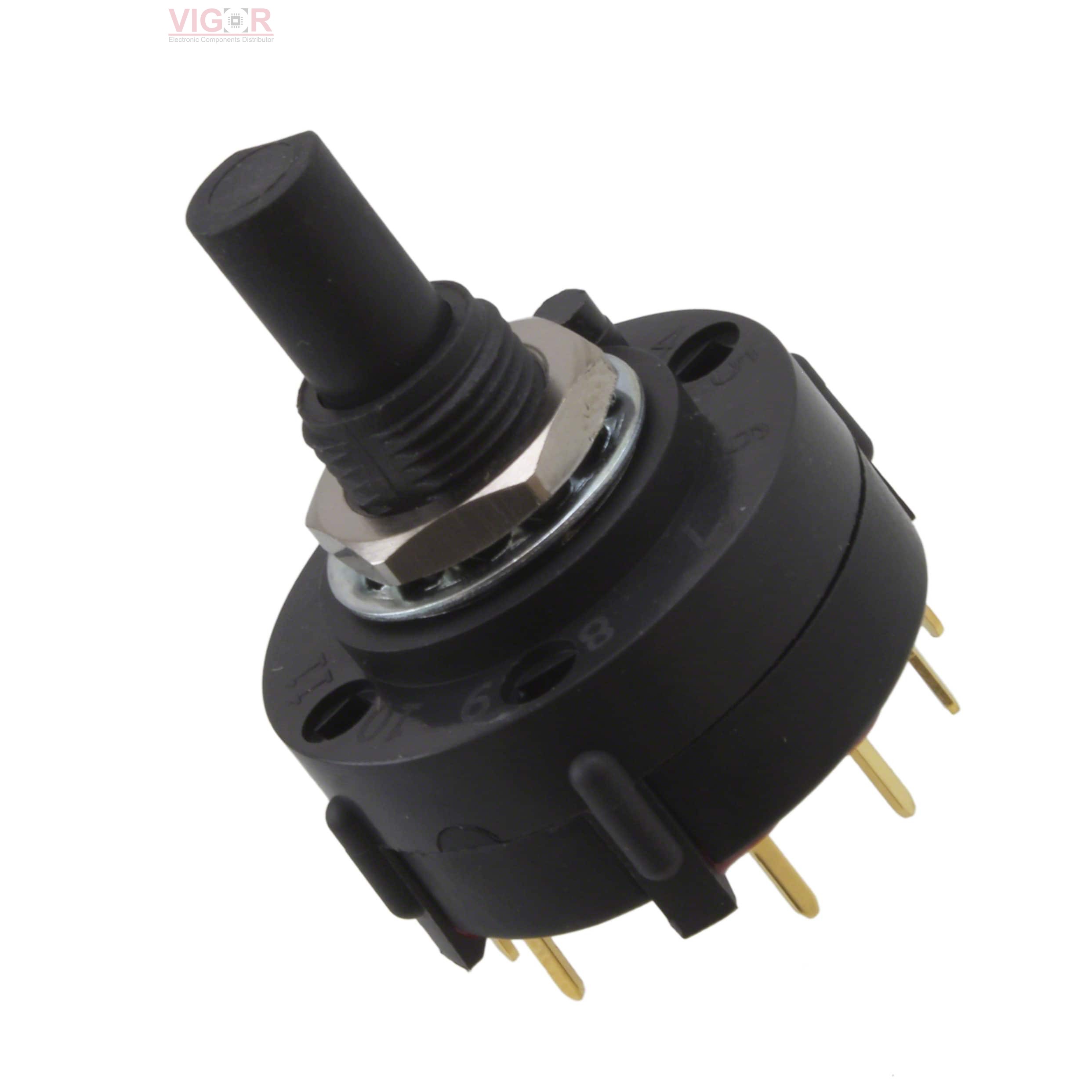

Image is for reference,
please contact us to get the real picture

Part No :

A20503RNCGE

Manufacturer
C&K
Description
SWITCH ROTARY 5POS 2.5A 125V
Catalog
Rotary Switches
Shipped from
HK warehouse
Expected Shipping Date
Jul 11 - Jul 15 2025
DataSheet
A20503RNCGE PDF
Availability
22 pieces
Unit Price
$17.20000

Current price of A20503RNCGE is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

A20503RNCGE Specifications
Type Description
Series:A
Package:Tray
Part Status:Active
Number of Positions:5
Index Stops:Fixed
Number of Decks:1
Number of Poles per Deck:2
Circuit per Deck:DP5T
Contact Timing:Non-Shorting (BBM)
Current Rating (Amps):2.5A (AC), 350mA (DC)
Voltage Rating - AC:125 V
Voltage Rating - DC:125 V
Actuator Type:Flatted (6.35mm Dia)
Actuator Length:9.53mm
Angle of Throw:30°
Contact Material:Silver (Ag)
Contact Finish:Gold
Mounting Type:Panel Mount, Through Hole
Termination Style:PC Pin
Features:Epoxy Sealed Terminals
Depth Behind Panel:14.48mm
