MA05L1NCQD

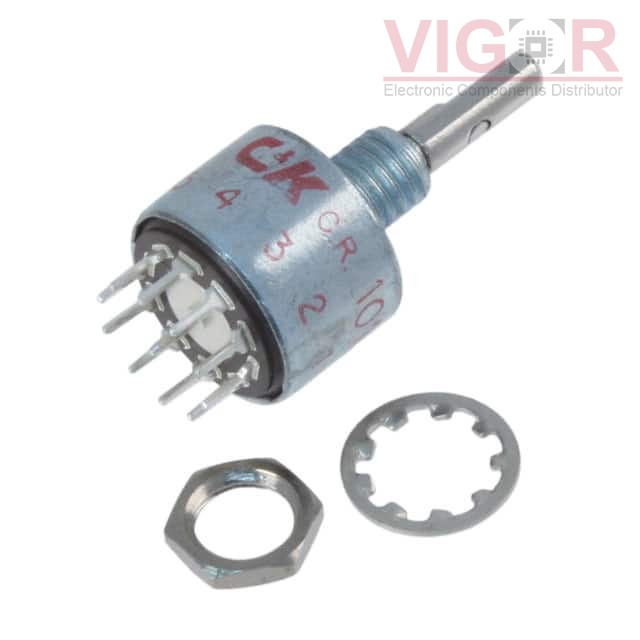

Image is for reference,
please contact us to get the real picture

Part No :: MA05L1NCQD

Manufacturer: C&K

Description: SWITCH ROTARY 5POS 250MA 125V

Catalog: Rotary Switches

Shipped from: HK warehouse

Expected Shipping Date: Jul 14 - Jul 18 2025

DataSheet: MA05L1NCQD PDF

Availability: 1452 pieces

Unit Price: ~~$18.01000~~

Current price of MA05L1NCQD is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

MA05L1NCQD Specifications

Type	Description
Series:	M
Package:	Bulk
Part Status:	Active
Number of Positions:	5
Index Stops:	Fixed
Number of Decks:	1
Number of Poles per Deck:	1
Circuit per Deck:	SP5T
Contact Timing:	Non-Shorting (BBM)
Current Rating (Amps):	250mA (AC/DC)
Voltage Rating - AC:	125 V
Voltage Rating - DC:	28 V
Actuator Type:	Flatted (3.17mm Dia)
Actuator Length:	10.16mm
Angle of Throw:	36°
Contact Material:	Copper Alloy
Contact Finish:	Silver
Mounting Type:	Panel Mount, Through Hole
Termination Style:	PC Pin
Features:	-
Depth Behind Panel:	10.42mm
