71ADF36-02-2-AJN

71ADF36-02-2-AJN

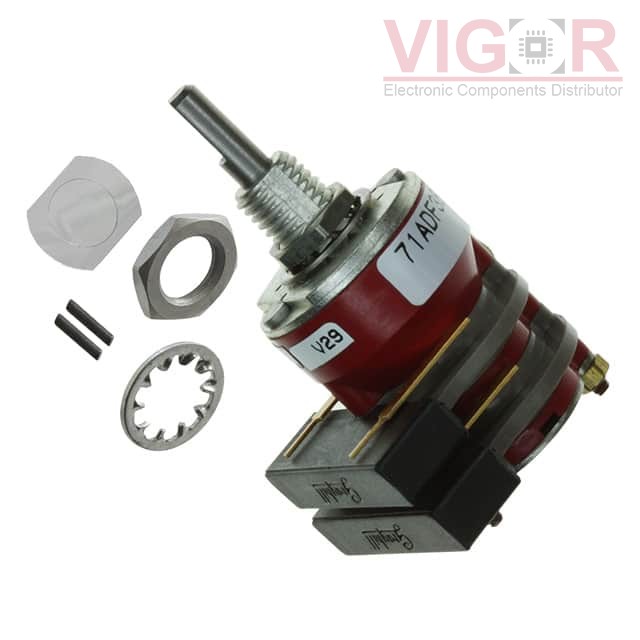

Image is for reference,
please contact us to get the real picture

Part No :

71ADF36-02-2-AJN

Manufacturer
Grayhill, Inc.
Description
SWITCH ROTARY 2-5POS 250MA 115V
Catalog
Rotary Switches
Shipped from
HK warehouse
Expected Shipping Date
Jul 07 - Jul 11 2025
DataSheet
71ADF36-02-2-AJN PDF
Availability
21 pieces
Unit Price
$28.24000

Current price of 71ADF36-02-2-AJN is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

71ADF36-02-2-AJN Specifications
Type Description
Series:71
Package:Bulk
Part Status:Active
Number of Positions:2 ~ 5
Index Stops:Adjustable
Number of Decks:2
Number of Poles per Deck:2
Circuit per Deck:DP5T
Contact Timing:Non-Shorting (BBM)
Current Rating (Amps):250mA (AC/DC)
Voltage Rating - AC:115 V
Voltage Rating - DC:30 V
Actuator Type:Flatted (3.17mm Dia)
Actuator Length:9.53mm
Angle of Throw:36°
Contact Material:Silver Alloy
Contact Finish:-
Mounting Type:Panel Mount, Through Hole, Right Angle
Termination Style:PC Pin
Features:-
Depth Behind Panel:24.87mm
