NR01103ANG13-1H

NR01103ANG13-1H

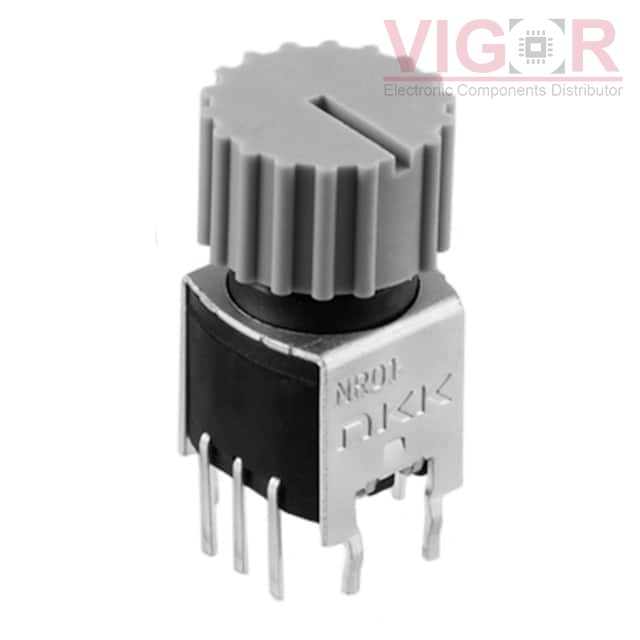

Image is for reference,
please contact us to get the real picture

Part No :

NR01103ANG13-1H

Manufacturer
NKK Switches
Description
SWITCH ROTARY SP3T 0.4VA 28V
Catalog
Rotary Switches
Shipped from
HK warehouse
Expected Shipping Date
Jul 18 - Jul 22 2025
DataSheet
NR01103ANG13-1H PDF
Availability
19 pieces
Unit Price
$11.55000

Current price of NR01103ANG13-1H is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

NR01103ANG13-1H Specifications
Type Description
Series:NR01
Package:Bulk
Part Status:Active
Number of Positions:3
Index Stops:Fixed
Number of Decks:1
Number of Poles per Deck:1
Circuit per Deck:SP3T
Contact Timing:Non-Shorting (BBM)
Current Rating (Amps):0.4VA (AC/DC)
Voltage Rating - AC:28 V
Voltage Rating - DC:28 V
Actuator Type:Knob
Actuator Length:7.00mm
Angle of Throw:45°
Contact Material:Beryllium Copper
Contact Finish:Gold
Mounting Type:Through Hole
Termination Style:PC Pin
Features:-
Depth Behind Panel:10.50mm
