71BD36-01-1-AJN

71BD36-01-1-AJN

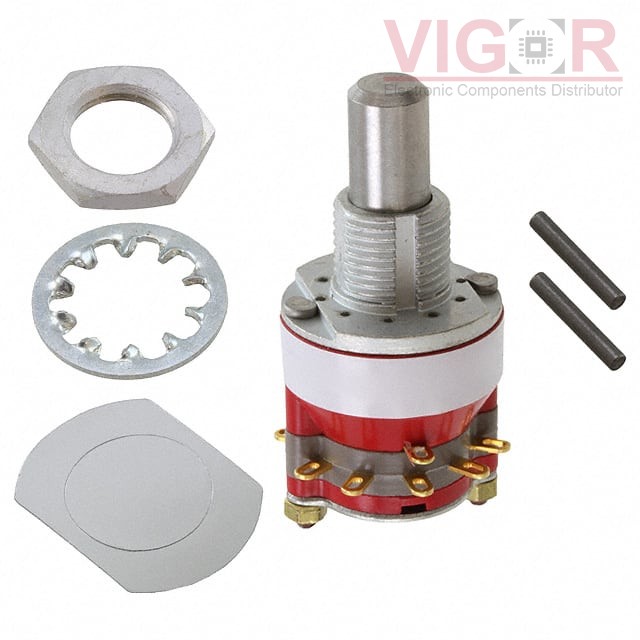

Image is for reference,
please contact us to get the real picture

Part No :

71BD36-01-1-AJN

Manufacturer
Grayhill, Inc.
Description
SWITCH ROTARY 2-10POS 250MA 115V
Catalog
Rotary Switches
Shipped from
HK warehouse
Expected Shipping Date
Jul 22 - Jul 26 2025
DataSheet
71BD36-01-1-AJN PDF
Availability
180 pieces
Unit Price
$19.95000

Current price of 71BD36-01-1-AJN is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

71BD36-01-1-AJN Specifications
Type Description
Series:71
Package:Bulk
Part Status:Active
Number of Positions:2 ~ 10
Index Stops:Adjustable
Number of Decks:1
Number of Poles per Deck:1
Circuit per Deck:SP10T
Contact Timing:Non-Shorting (BBM)
Current Rating (Amps):250mA (AC/DC)
Voltage Rating - AC:115 V
Voltage Rating - DC:30 V
Actuator Type:Flatted (6.35mm Dia)
Actuator Length:9.53mm
Angle of Throw:36°
Contact Material:Silver Alloy
Contact Finish:-
Mounting Type:Panel Mount
Termination Style:Solder Lug
Features:-
Depth Behind Panel:19.33mm
