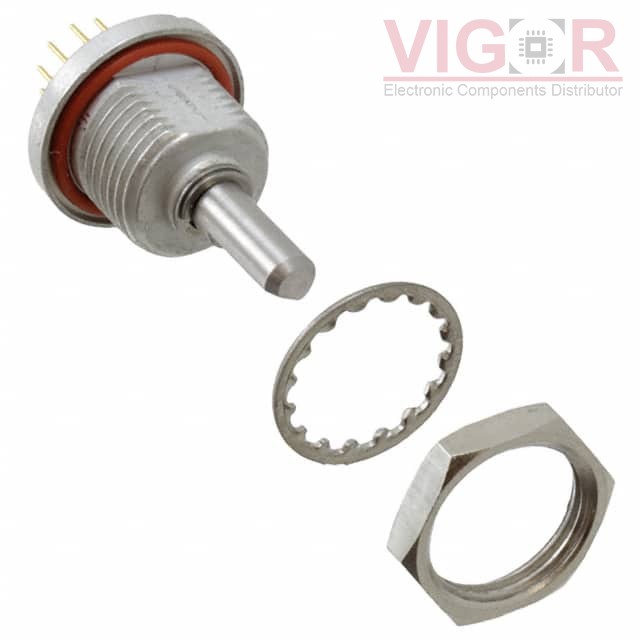

77P36-01-1-02N

77P36-01-1-02N

Image is for reference,
please contact us to get the real picture

Part No :

77P36-01-1-02N

Manufacturer
Grayhill, Inc.
Description
SWITCH ROTARY 2POS 50MA 115V
Catalog
Rotary Switches
Shipped from
HK warehouse
Expected Shipping Date
Jul 04 - Jul 08 2025
DataSheet
77P36-01-1-02N PDF
Availability
112 pieces
Unit Price
$31.20000

Current price of 77P36-01-1-02N is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

77P36-01-1-02N Specifications
Type Description
Series:77
Package:Bulk
Part Status:Active
Number of Positions:2
Index Stops:Fixed
Number of Decks:1
Number of Poles per Deck:1
Circuit per Deck:SPDT
Contact Timing:Non-Shorting (BBM)
Current Rating (Amps):50mA (AC), 200mA (DC)
Voltage Rating - AC:115 V
Voltage Rating - DC:28 V
Actuator Type:Flatted (3.17mm Dia)
Actuator Length:7.98mm
Angle of Throw:36°
Contact Material:Silver Cadmium Oxide (AgCdO)
Contact Finish:Gold
Mounting Type:Panel Mount, Through Hole
Termination Style:PC Pin
Features:-
Depth Behind Panel:4.57mm
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT R10805RN02Q

R10805RN02Q

SWITCH ROTARY 8POS 5A 125V

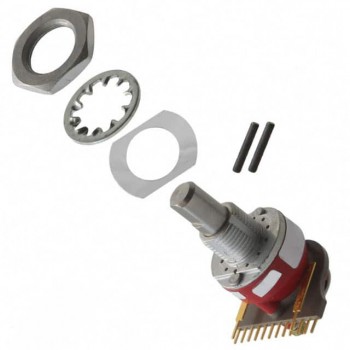

HOT 71BDF30-01-2-AJN
