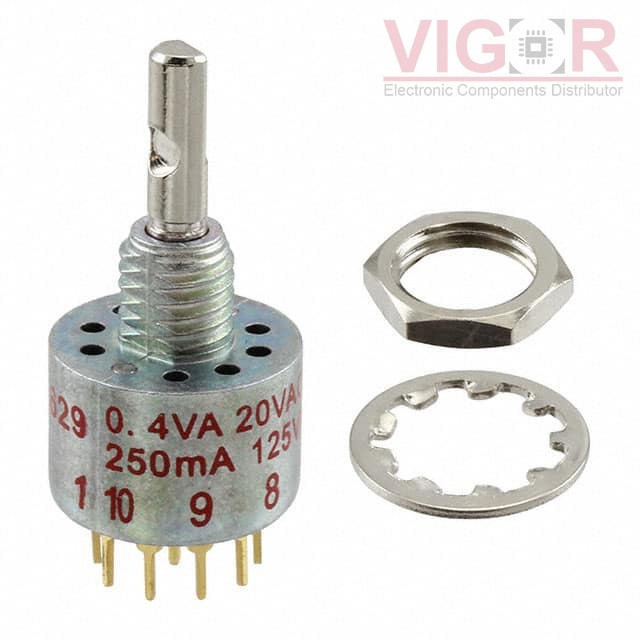

MA05L1NCGD

Image is for reference,
please contact us to get the real picture

Part No :: MA05L1NCGD

Manufacturer: C&K

Description: SWITCH ROTARY 5POS 250MA 125V

Catalog: Rotary Switches

Shipped from: HK warehouse

Expected Shipping Date: Jul 03 - Jul 07 2025

DataSheet: MA05L1NCGD PDF

Availability: 4 pieces

Unit Price: ~~$19.22000~~

Current price of MA05L1NCGD is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

MA05L1NCGD Specifications

Type	Description
Series:	M
Package:	Tray
Part Status:	Active
Number of Positions:	5
Index Stops:	Fixed
Number of Decks:	1
Number of Poles per Deck:	1
Circuit per Deck:	SP5T
Contact Timing:	Non-Shorting (BBM)
Current Rating (Amps):	250mA (AC/DC)
Voltage Rating - AC:	125 V
Voltage Rating - DC:	28 V
Actuator Type:	Flatted (3.17mm Dia)
Actuator Length:	10.16mm
Angle of Throw:	36°
Contact Material:	Copper Alloy
Contact Finish:	Gold
Mounting Type:	Panel Mount, Through Hole
Termination Style:	PC Pin
Features:	-
Depth Behind Panel:	10.42mm

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

Hot Products

HOT

19001-04UL

SWITCH ROTARY 4POS 15A 120V

HOT

R10015RS02Q

SWITCH ROTARY 10POS 5A 125V

HOT

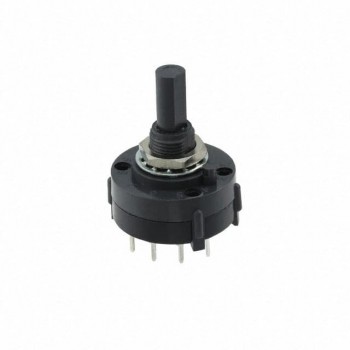

A20405RNCQ
