HS16-1

HS16-1

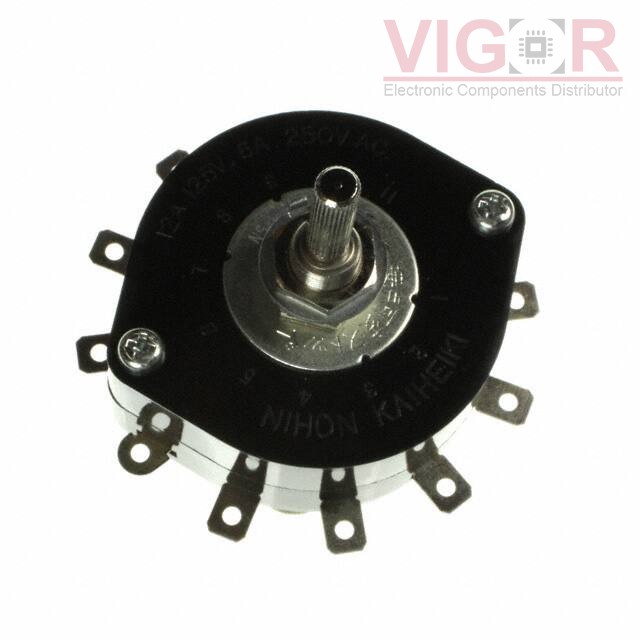

Image is for reference,
please contact us to get the real picture

Part No :

HS16-1

Manufacturer
NKK Switches
Description
SWITCH ROTARY 2-11POS 12A 125V
Catalog
Rotary Switches
Shipped from
HK warehouse
Expected Shipping Date
Jul 09 - Jul 13 2025
DataSheet
HS16-1 PDF
Availability
8 pieces
Unit Price
$22.52000

Current price of HS16-1 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

HS16-1 Specifications
Type Description
Series:HS
Package:Box
Part Status:Obsolete
Number of Positions:2 ~ 11
Index Stops:Adjustable
Number of Decks:1
Number of Poles per Deck:1
Circuit per Deck:SP11T
Contact Timing:Non-Shorting (BBM)
Current Rating (Amps):12A (AC)
Voltage Rating - AC:125 V
Voltage Rating - DC:-
Actuator Type:Knurled (6mm Dia)
Actuator Length:15.00mm
Angle of Throw:30°
Contact Material:Phosphor Bronze
Contact Finish:-
Mounting Type:Panel Mount
Termination Style:Solder Lug
Features:-
Depth Behind Panel:31.50mm
