50S36-01-1-04N

50S36-01-1-04N

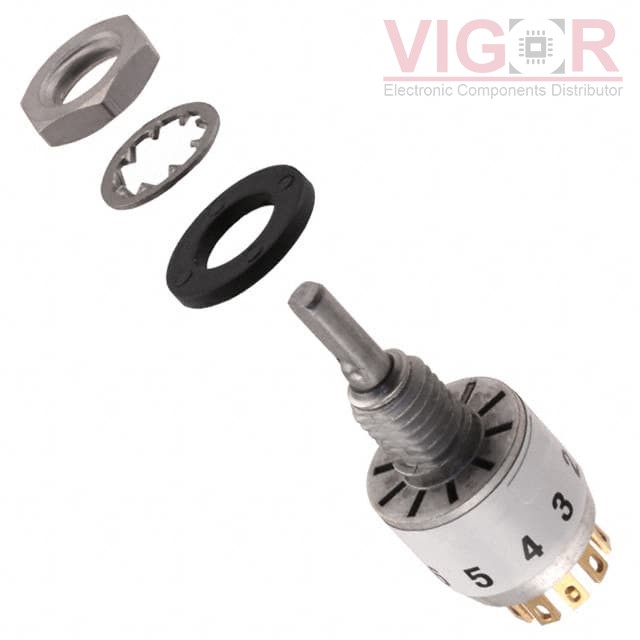

Image is for reference,
please contact us to get the real picture

Part No :

50S36-01-1-04N

Manufacturer
Grayhill, Inc.
Description
SWITCH ROTARY 4POS 150MA 115V
Catalog
Rotary Switches
Shipped from
HK warehouse
Expected Shipping Date
Jul 26 - Jul 30 2025
DataSheet
50S36-01-1-04N PDF
Availability
0 pieces
Unit Price
$12.60480

Current price of 50S36-01-1-04N is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

50S36-01-1-04N Specifications
Type Description
Series:50
Package:Bulk
Part Status:Active
Number of Positions:4
Index Stops:Fixed
Number of Decks:1
Number of Poles per Deck:1
Circuit per Deck:SP4T
Contact Timing:Non-Shorting (BBM)
Current Rating (Amps):150mA (AC), 200mA (DC)
Voltage Rating - AC:115 V
Voltage Rating - DC:28 V
Actuator Type:Flatted (3.17mm Dia)
Actuator Length:9.53mm
Angle of Throw:36°
Contact Material:-
Contact Finish:Gold
Mounting Type:Panel Mount
Termination Style:Solder Lug
Features:Shaft and Panel Sealed
Depth Behind Panel:18.77mm
