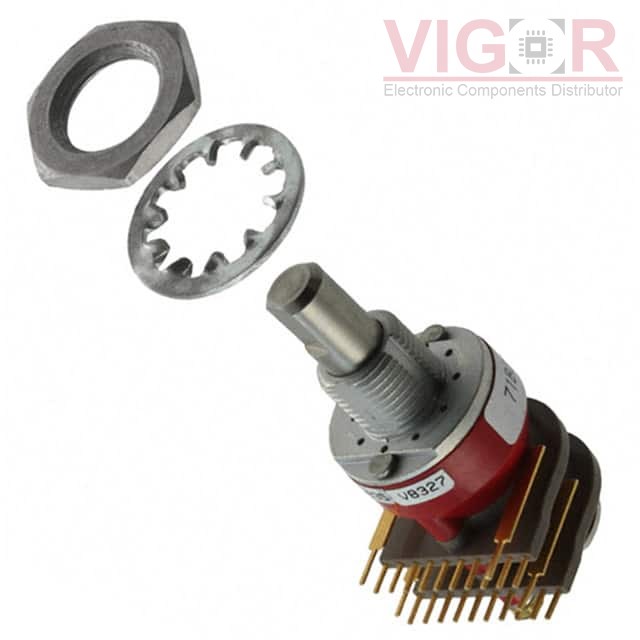

71BDF36-02-2-AJN

71BDF36-02-2-AJN

Image is for reference,
please contact us to get the real picture

Part No :

71BDF36-02-2-AJN

Manufacturer
Grayhill, Inc.
Description
SWITCH ROTARY 2-5POS 250MA 115V
Catalog
Rotary Switches
Shipped from
HK warehouse
Expected Shipping Date
Jul 05 - Jul 09 2025
DataSheet
71BDF36-02-2-AJN PDF
Availability
21 pieces
Unit Price
$28.24000

Current price of 71BDF36-02-2-AJN is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

71BDF36-02-2-AJN Specifications
Type Description
Series:71
Package:Bulk
Part Status:Active
Number of Positions:2 ~ 5
Index Stops:Adjustable
Number of Decks:2
Number of Poles per Deck:2
Circuit per Deck:DP5T
Contact Timing:Non-Shorting (BBM)
Current Rating (Amps):250mA (AC/DC)
Voltage Rating - AC:115 V
Voltage Rating - DC:30 V
Actuator Type:Flatted (6.35mm Dia)
Actuator Length:9.53mm
Angle of Throw:36°
Contact Material:Silver Alloy
Contact Finish:-
Mounting Type:Panel Mount, Through Hole, Right Angle
Termination Style:PC Pin
Features:-
Depth Behind Panel:24.87mm
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT A11503RNZQ

A11503RNZQ

SWITCH ROTARY 3POS 2.5A 125V
HOT 77SP36-01-1-10N

77SP36-01-1-10N

SWITCH ROTARY 10POS 50MA 115V

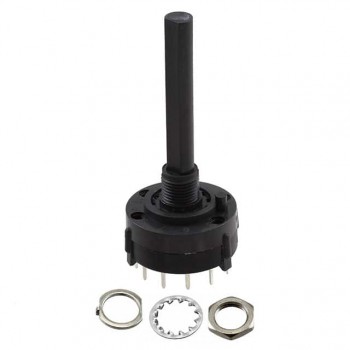

HOT A11015RNCQ
