MB03L2NZGD

MB03L2NZGD

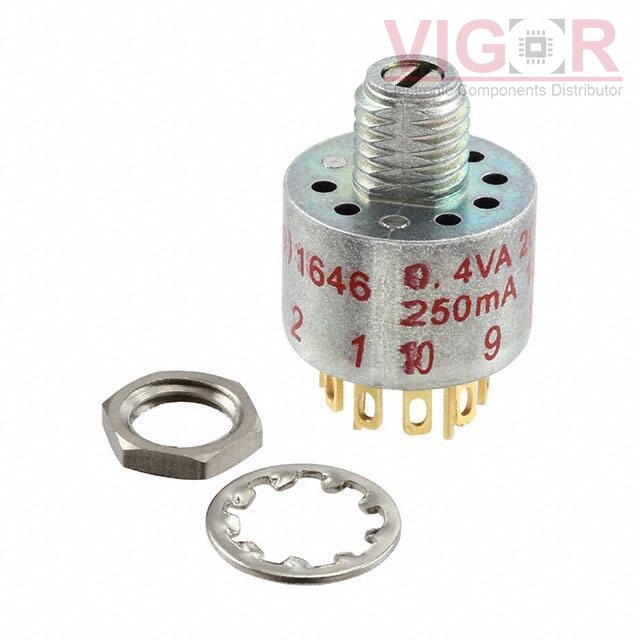

Image is for reference,
please contact us to get the real picture

Part No :

MB03L2NZGD

Manufacturer
C&K
Description
SWITCH ROTARY 3POS 250MA 125V
Catalog
Rotary Switches
Shipped from
HK warehouse
Expected Shipping Date
Jul 28 - Aug 01 2025
DataSheet
MB03L2NZGD PDF
Availability
67 pieces
Unit Price
$20.44000

Current price of MB03L2NZGD is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

MB03L2NZGD Specifications
Type Description
Series:M
Package:Tray
Part Status:Active
Number of Positions:3
Index Stops:Fixed
Number of Decks:1
Number of Poles per Deck:2
Circuit per Deck:DP3T
Contact Timing:Non-Shorting (BBM)
Current Rating (Amps):250mA (AC/DC)
Voltage Rating - AC:125 V
Voltage Rating - DC:28 V
Actuator Type:Screwdriver Slot
Actuator Length:Flush
Angle of Throw:36°
Contact Material:Copper Alloy
Contact Finish:Gold
Mounting Type:Panel Mount
Termination Style:Solder Lug
Features:-
Depth Behind Panel:14.86mm
