DB3CC1AA

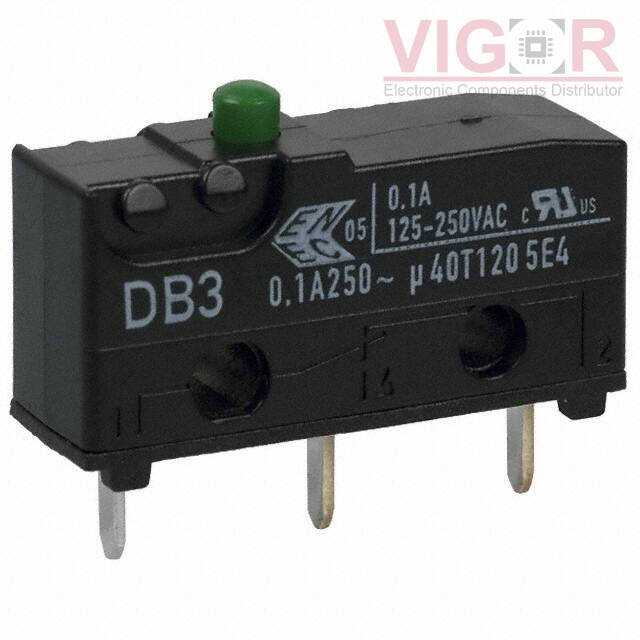

Image is for reference,
please contact us to get the real picture

Part No :: DB3CC1AA

Manufacturer: ZF Electronics

Description: SWITCH SNAP ACT SPDT 100MA 125V

Catalog: Snap Action, Limit Switches

Shipped from: HK warehouse

Expected Shipping Date: Jun 30 - Jul 04 2025

DataSheet: DB3CC1AA PDF

Availability: 0 pieces

Unit Price: ~~$1.43550~~

Current price of DB3CC1AA is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

DB3CC1AA Specifications

Type	Description
Series:	DB
Package:	Bulk
Part Status:	Active
Circuit:	SPDT
Switch Function:	On-Mom
Current Rating (Amps):	100mA (AC)
Voltage Rating - AC:	125 V
Voltage Rating - DC:	-
Actuator Type:	Round (Pin Plunger)
Mounting Type:	Through Hole
Termination Style:	PC Pin
Ingress Protection:	IP50 - Dust Protected
Features:	-
Operating Force:	150gf
Release Force:	-
Pretravel:	0.040" (1.0mm)
Differential Travel:	0.004" (0.1mm)
Overtravel:	0.025" (0.6mm)
Operating Temperature:	-40°C ~ 120°C
