D2SW-P01L3B

D2SW-P01L3B

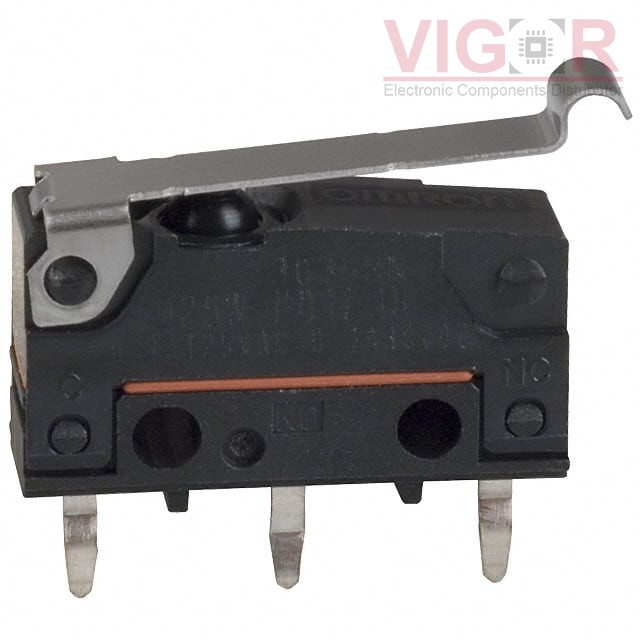

Image is for reference,
please contact us to get the real picture

Part No :

D2SW-P01L3B

Manufacturer
Omron Electronics Components
Description
SWITCH SNAP ACT SPDT 100MA 125V
Catalog
Snap Action, Limit Switches
Shipped from
HK warehouse
Expected Shipping Date
Jul 01 - Jul 05 2025
DataSheet
D2SW-P01L3B PDF
Availability
489 pieces
Unit Price
$2.48000

Current price of D2SW-P01L3B is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

D2SW-P01L3B Specifications
Type Description
Series:D2SW-P
Package:Tray
Part Status:Active
Circuit:SPDT
Switch Function:On-Mom
Current Rating (Amps):100mA (AC/DC)
Voltage Rating - AC:125 V
Voltage Rating - DC:30 V
Actuator Type:Lever, Simulated Roller
Mounting Type:Through Hole
Termination Style:PC Pin
Ingress Protection:IP67 - Dust Tight, Waterproof
Features:-
Operating Force:61gf
Release Force:5.099gf
Pretravel:-
Differential Travel:0.031" (0.8mm)
Overtravel:0.030" (0.76mm)
Operating Temperature:-20°C ~ 70°C
