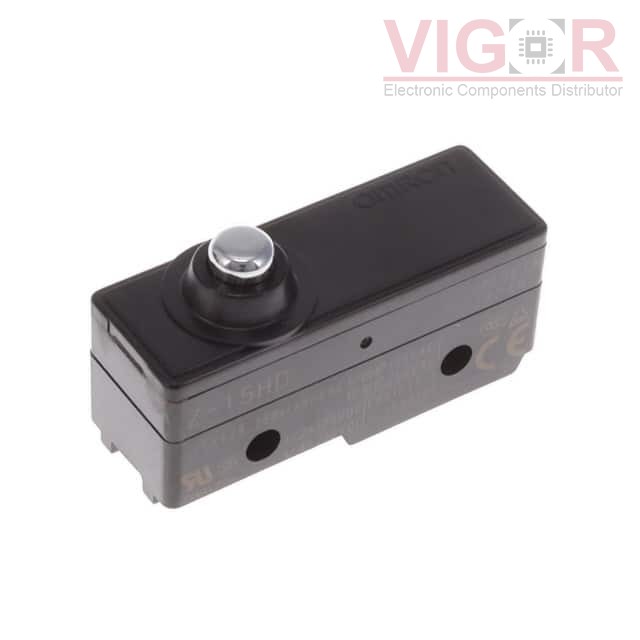

Z-15HD

Z-15HD

Image is for reference,
please contact us to get the real picture

Part No :

Z-15HD

Manufacturer
Omron Automation & Safety Services
Description
SWITCH SNAP ACTION SPDT 15A 125V
Catalog
Snap Action, Limit Switches
Shipped from
HK warehouse
Expected Shipping Date
Jul 01 - Jul 05 2025
DataSheet
Z-15HD PDF
Availability
10 pieces
Unit Price
$20.55000

Current price of Z-15HD is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

Z-15HD Specifications
Type Description
Series:Z
Package:Bulk
Part Status:Active
Circuit:SPDT
Switch Function:On-Mom
Current Rating (Amps):15A (AC), 2A (DC)
Voltage Rating - AC:125 V
Voltage Rating - DC:30 V
Actuator Type:Round (Pin Plunger)
Mounting Type:Chassis Mount
Termination Style:Solder Lug
Ingress Protection:IP00
Features:-
Operating Force:200 ~ 285gf
Release Force:114gf
Pretravel:0.012" (0.3mm)
Differential Travel:0.001" (0.025mm)
Overtravel:0.062" (1.6mm)
Operating Temperature:-25°C ~ 80°C
