AH16649-A

AH16649-A

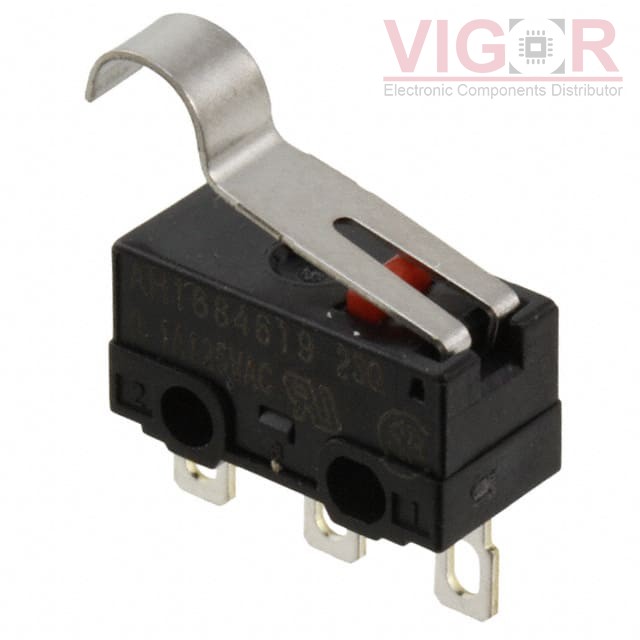

Image is for reference,
please contact us to get the real picture

Part No :

AH16649-A

Manufacturer
Panasonic
Description
SWITCH SNAP ACTION SPDT 3A 125V
Catalog
Snap Action, Limit Switches
Shipped from
HK warehouse
Expected Shipping Date
Jul 04 - Jul 08 2025
DataSheet
AH16649-A PDF
Availability
0 pieces
Unit Price
$1.44900

Current price of AH16649-A is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

AH16649-A Specifications
Type Description
Series:AH1
Package:Tube
Part Status:Active
Circuit:SPDT
Switch Function:On-Mom
Current Rating (Amps):3A (AC), 2A (DC)
Voltage Rating - AC:125 V
Voltage Rating - DC:30 V
Actuator Type:Lever, Simulated Roller
Mounting Type:Chassis Mount
Termination Style:Solder Lug
Ingress Protection:-
Features:-
Operating Force:55gf
Release Force:4.079gf
Pretravel:0.083" (2.1mm)
Differential Travel:0.020" (0.5mm)
Overtravel:0.020" (0.5mm)
Operating Temperature:-25°C ~ 85°C
