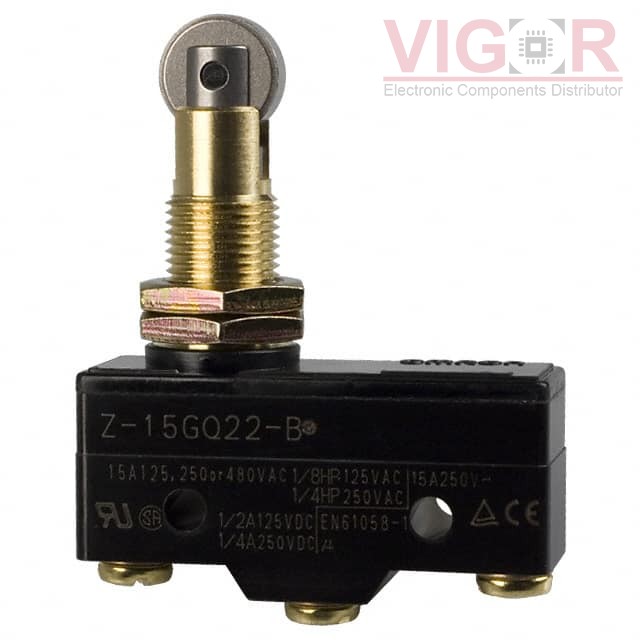

Z-15GQ22-B

Z-15GQ22-B

Image is for reference,
please contact us to get the real picture

Part No :

Z-15GQ22-B

Manufacturer
Omron Automation & Safety Services
Description
SWITCH SNAP ACTION SPDT 15A 125V
Catalog
Snap Action, Limit Switches
Shipped from
HK warehouse
Expected Shipping Date
Jul 22 - Jul 26 2025
DataSheet
Z-15GQ22-B PDF
Availability
168 pieces
Unit Price
$27.70000

Current price of Z-15GQ22-B is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

Z-15GQ22-B Specifications
Type Description
Series:Z
Package:Tray
Part Status:Active
Circuit:SPDT
Switch Function:On-Mom
Current Rating (Amps):15A (AC), 6A (DC)
Voltage Rating - AC:125 V
Voltage Rating - DC:30 V
Actuator Type:Roller Plunger
Mounting Type:Panel Mount
Termination Style:Screw Terminal
Ingress Protection:IP00
Features:-
Operating Force:250 ~ 350gf
Release Force:114gf
Pretravel:0.015" (0.4mm)
Differential Travel:0.002" (0.05mm)
Overtravel:0.141" (3.6mm)
Operating Temperature:-25°C ~ 80°C
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT AV400461

AV400461

SWITCH SNAP ACT SPDT 100MA 30V
HOT HBS2KGB4SP011C

HBS2KGB4SP011C

SWITCH SNAP ACTION SPDT 20A 125V

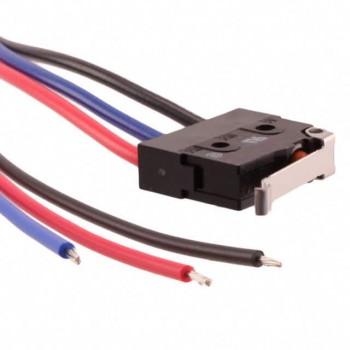

HOT D2SW-3L3MS-0
