AVT3224613

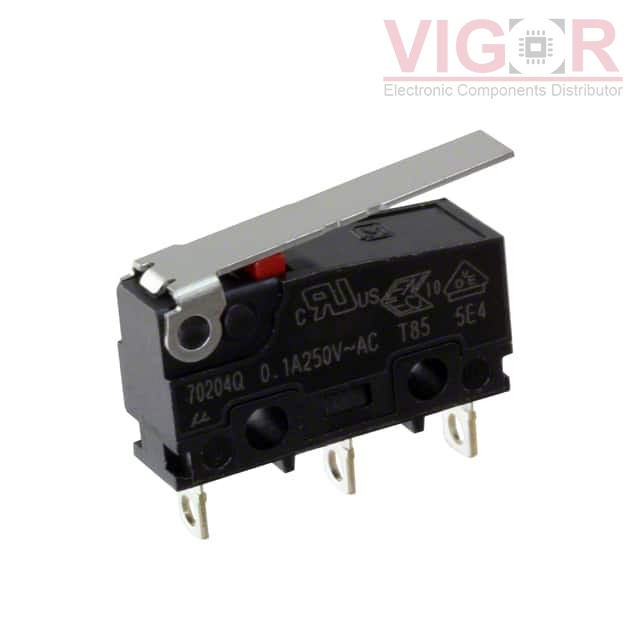

Image is for reference,
please contact us to get the real picture

Part No :: AVT3224613

Manufacturer: Panasonic

Description: SWITCH SNAP ACT SPDT 100MA 125V

Catalog: Snap Action, Limit Switches

Shipped from: HK warehouse

Expected Shipping Date: Jul 26 - Jul 30 2025

DataSheet: AVT3224613 PDF

Availability: 15 pieces

Unit Price: ~~$1.86000~~

Current price of AVT3224613 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

AVT3224613 Specifications

Type	Description
Series:	AVT3
Package:	Bulk
Part Status:	Active
Circuit:	SPDT
Switch Function:	On-Mom
Current Rating (Amps):	100mA (AC/DC)
Voltage Rating - AC:	125 V
Voltage Rating - DC:	30 V
Actuator Type:	Lever, Straight
Mounting Type:	Chassis Mount
Termination Style:	Solder Lug
Ingress Protection:	-
Features:	-
Operating Force:	35gf
Release Force:	3.059gf
Pretravel:	0.110" (2.8mm)
Differential Travel:	0.031" (0.8mm)
Overtravel:	0.047" (1.2mm)
Operating Temperature:	-25°C ~ 85°C
