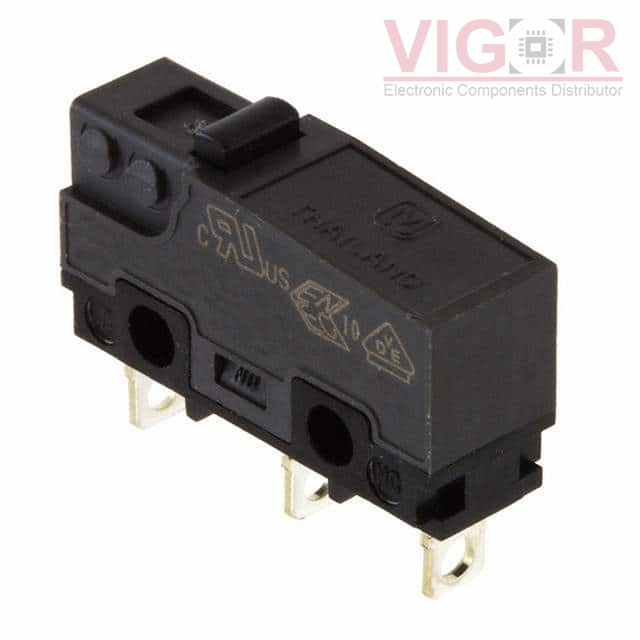

AVL32053-A

AVL32053-A

Image is for reference,
please contact us to get the real picture

Part No :

AVL32053-A

Manufacturer
Panasonic
Description
SWITCH SNAP ACTION SPDT 5A 125V
Catalog
Snap Action, Limit Switches
Shipped from
HK warehouse
Expected Shipping Date
Jul 10 - Jul 14 2025
DataSheet
AVL32053-A PDF
Availability
170 pieces
Unit Price
$1.96000

Current price of AVL32053-A is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

AVL32053-A Specifications
Type Description
Series:AVL3
Package:Bulk
Part Status:Active
Circuit:SPDT
Switch Function:On-Mom
Current Rating (Amps):5A (AC/DC)
Voltage Rating - AC:125 V
Voltage Rating - DC:30 V
Actuator Type:Round (Pin Plunger)
Mounting Type:Chassis Mount
Termination Style:Solder Lug
Ingress Protection:-
Features:-
Operating Force:150gf
Release Force:20gf
Pretravel:0.024" (0.6mm)
Differential Travel:0.004" (0.1mm)
Overtravel:0.015" (0.4mm)
Operating Temperature:-25°C ~ 85°C
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products

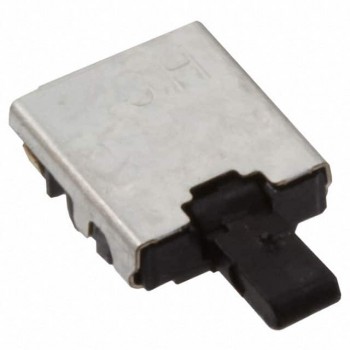

HOT ESE-13H05B

ESE-13H05B

SWITCH DETECTOR SPST-NO 10MA 5V

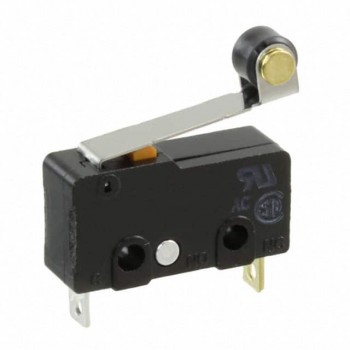

HOT SS-5GL2-2

SS-5GL2-2

SWITCH SNAP ACT SPST-NC 5A 125V

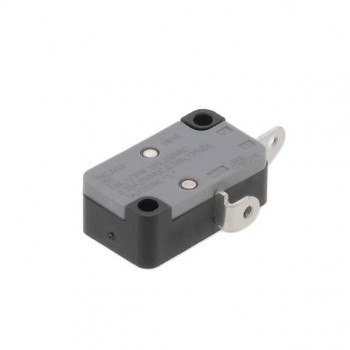

HOT TMCJG6VP0010Y
