AV15653F

AV15653F

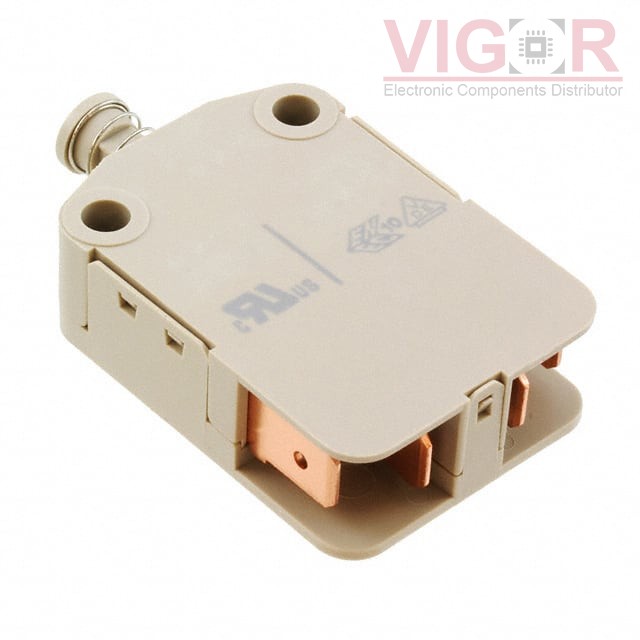

Image is for reference,
please contact us to get the real picture

Part No :

AV15653F

Manufacturer
Panasonic
Description
SWITCH SNAP ACT SPST-NC 10A 125V
Catalog
Snap Action, Limit Switches
Shipped from
HK warehouse
Expected Shipping Date
Jul 13 - Jul 17 2025
DataSheet
AV15653F PDF
Availability
149 pieces
Unit Price
$5.88000

Current price of AV15653F is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

AV15653F Specifications
Type Description
Series:AV1
Package:Bulk
Part Status:Obsolete
Circuit:SPST-NC
Switch Function:On-Mom
Current Rating (Amps):10A (AC)
Voltage Rating - AC:125 V
Voltage Rating - DC:-
Actuator Type:Round (Pin Plunger)
Mounting Type:Chassis Mount
Termination Style:Quick Connect - 0.250" (6.3mm)
Ingress Protection:IP40
Features:-
Operating Force:295gf
Release Force:-
Pretravel:-
Differential Travel:-
Overtravel:0.168" (4.3mm)
Operating Temperature:-25°C ~ 85°C
