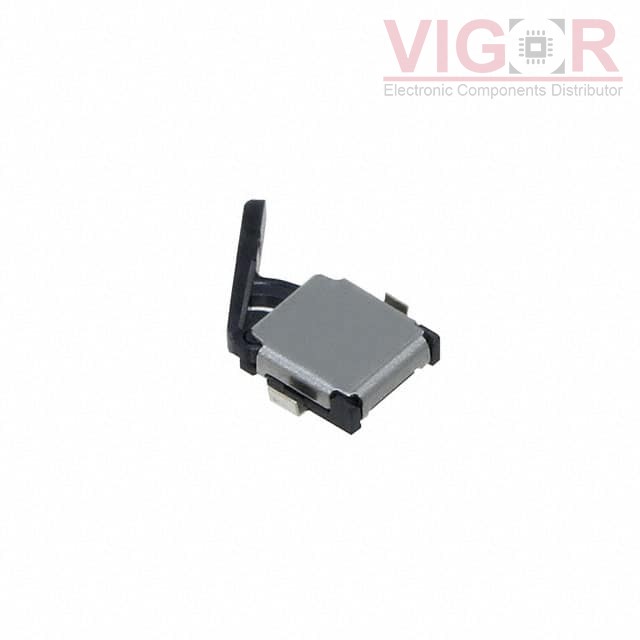

D3SH-B1R1

D3SH-B1R1

Image is for reference,
please contact us to get the real picture

Part No :

D3SH-B1R1

Manufacturer
Omron Electronics Components
Description
SWITCH DETECTOR SPST-NC 1MA 5V
Catalog
Snap Action, Limit Switches
Shipped from
HK warehouse
Expected Shipping Date
Jul 01 - Jul 05 2025
DataSheet
D3SH-B1R1 PDF
Availability
1070 pieces
Unit Price
$1.79000

Current price of D3SH-B1R1 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

D3SH-B1R1 Specifications
Type Description
Series:D3SH
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Circuit:SPST-NC
Switch Function:On-Mom
Current Rating (Amps):1mA (DC)
Voltage Rating - AC:-
Voltage Rating - DC:5 V
Actuator Type:Angled Toggle (Detector)
Mounting Type:Surface Mount, Right Angle
Termination Style:SMD (SMT) Tab
Ingress Protection:-
Features:Board Guide, Right Operating Lever
Operating Force:24gf
Release Force:-
Pretravel:-
Differential Travel:-
Overtravel:-
Operating Temperature:-25°C ~ 85°C
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products

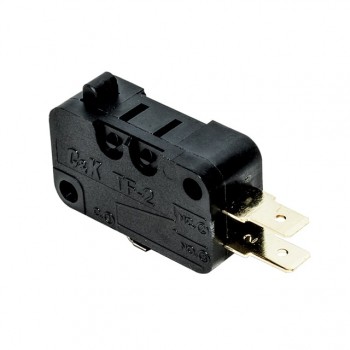

HOT TF2CJK6VT1410C

TF2CJK6VT1410C

SNAP SWITCH 10A 170GF SIM ROLLER

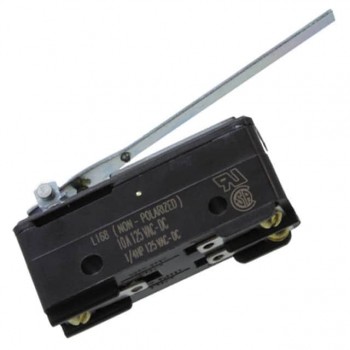

HOT MT-4RV

MT-4RV

SWITCH SNAP ACTION SPDT 10A 125V

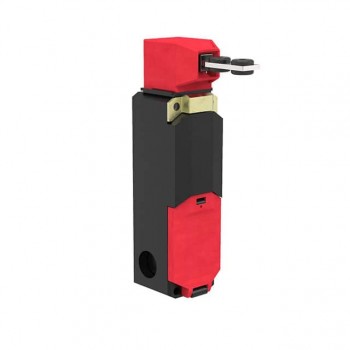

HOT SI-LS42DMJ
