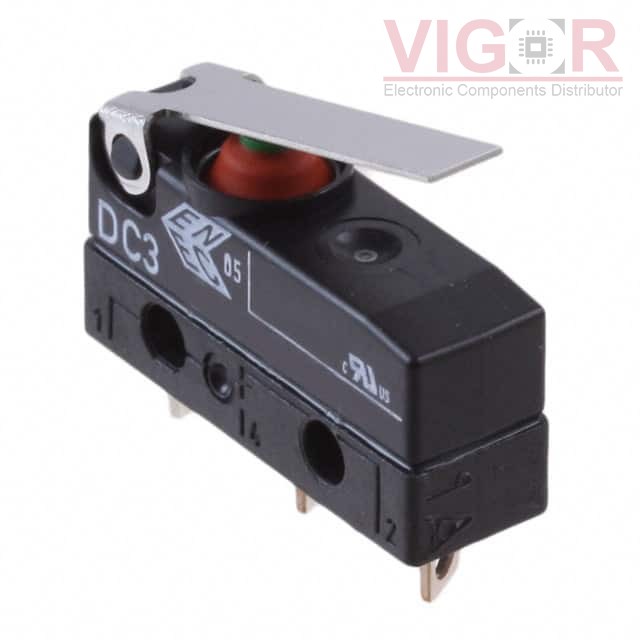

DC3C-A1LB

Image is for reference,
please contact us to get the real picture

Part No :: DC3C-A1LB

Manufacturer: ZF Electronics

Description: SWITCH SNAP ACT SPDT 100MA 125V

Catalog: Snap Action, Limit Switches

Shipped from: HK warehouse

Expected Shipping Date: Jul 11 - Jul 15 2025

DataSheet: DC3C-A1LB PDF

Availability: 4213 pieces

Unit Price: ~~$6.19000~~

Current price of DC3C-A1LB is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

DC3C-A1LB Specifications

Type	Description
Series:	DC
Package:	Bulk
Part Status:	Active
Circuit:	SPDT
Switch Function:	On-Mom
Current Rating (Amps):	100mA (AC)
Voltage Rating - AC:	125 V
Voltage Rating - DC:	-
Actuator Type:	Lever, Straight
Mounting Type:	Chassis Mount
Termination Style:	Solder Lug
Ingress Protection:	IP67 - Dust Tight, Waterproof
Features:	-
Operating Force:	82gf
Release Force:	-
Pretravel:	0.178" (4.5mm)
Differential Travel:	0.031" (0.8mm)
Overtravel:	0.060" (1.5mm)
Operating Temperature:	-40°C ~ 120°C

Please confirm the specifications of the products when ordering.
