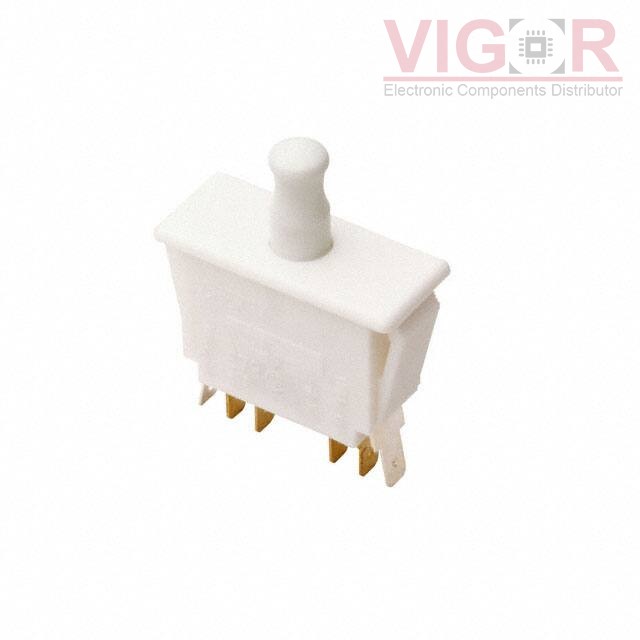

E78-00A

E78-00A

Image is for reference,
please contact us to get the real picture

Part No :

E78-00A

Manufacturer
Waldom Electronics
Description
SWITCH SNAP ACT DPDT 100MA 125V
Catalog
Snap Action, Limit Switches
Shipped from
HK warehouse
Expected Shipping Date
Jul 04 - Jul 08 2025
DataSheet
E78-00A PDF
Availability
2019 pieces
Unit Price
$9.13000

Current price of E78-00A is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

E78-00A Specifications
Type Description
Series:E
Package:Bulk
Part Status:Active
Circuit:DPDT
Switch Function:On-Mom
Current Rating (Amps):100mA (AC)
Voltage Rating - AC:125 V
Voltage Rating - DC:-
Actuator Type:Round (Pin Plunger)
Mounting Type:Panel Mount, Snap-In
Termination Style:Quick Connect - 0.187" (4.7mm)
Ingress Protection:-
Features:-
Operating Force:680gf
Release Force:-
Pretravel:0.125" (3.2mm)
Differential Travel:0.075" (1.9mm)
Overtravel:0.375" (9.5mm)
Operating Temperature:-40°C ~ 85°C
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT D2JW-011-MD

D2JW-011-MD

SWITCH SNAP ACT SPDT 100MA 30V
HOT TMCGF5SP0040C

TMCGF5SP0040C

SWITCH SNAP ACTION SPDT 1A 125V

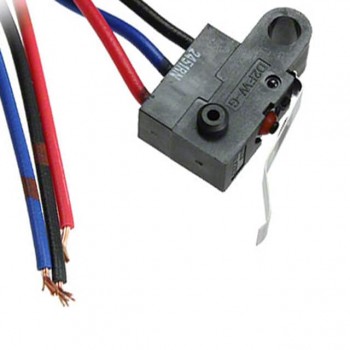

HOT D2FW-G071M(D)
