AV3514613-A

AV3514613-A

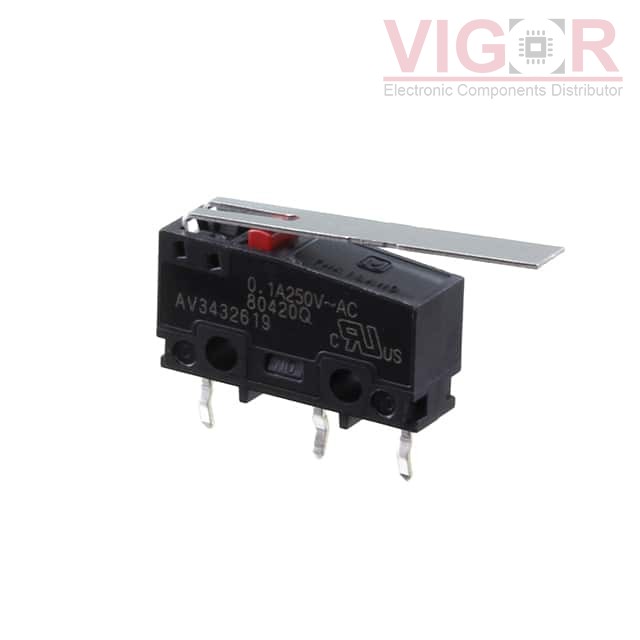

Image is for reference,
please contact us to get the real picture

Part No :

AV3514613-A

Manufacturer
Panasonic
Description
SWITCH SNAP ACT SPDT 100MA 125V
Catalog
Snap Action, Limit Switches
Shipped from
HK warehouse
Expected Shipping Date
Jul 22 - Jul 26 2025
DataSheet
AV3514613-A PDF
Availability
0 pieces
Unit Price
$1.49100

Current price of AV3514613-A is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

AV3514613-A Specifications
Type Description
Series:AV3
Package:Bulk
Part Status:Active
Circuit:SPDT
Switch Function:On-Mom
Current Rating (Amps):100mA (AC/DC)
Voltage Rating - AC:125 V
Voltage Rating - DC:30 V
Actuator Type:Lever, Straight
Mounting Type:Through Hole
Termination Style:PC Pin
Ingress Protection:-
Features:-
Operating Force:40gf
Release Force:3.500gf
Pretravel:0.100" (2.5mm)
Differential Travel:0.020" (0.5mm)
Overtravel:0.030" (0.76mm)
Operating Temperature:-25°C ~ 85°C
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT 4AC55

4AC55

SWITCH SNAP ACT SPDTX2 15A 125V

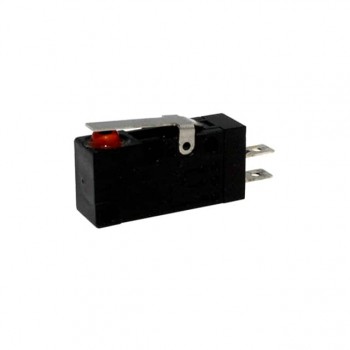

HOT VM3SAGF1802L04

VM3SAGF1802L04

IP67 SNAP ACTION SWITCH, SPST N.

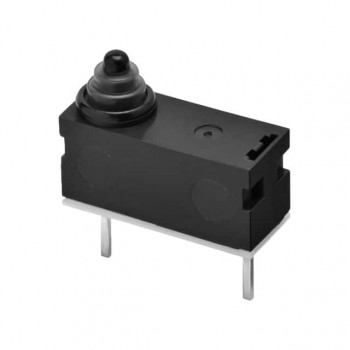

HOT D2AW-A003D R
