EVQ-PNF05M

EVQ-PNF05M

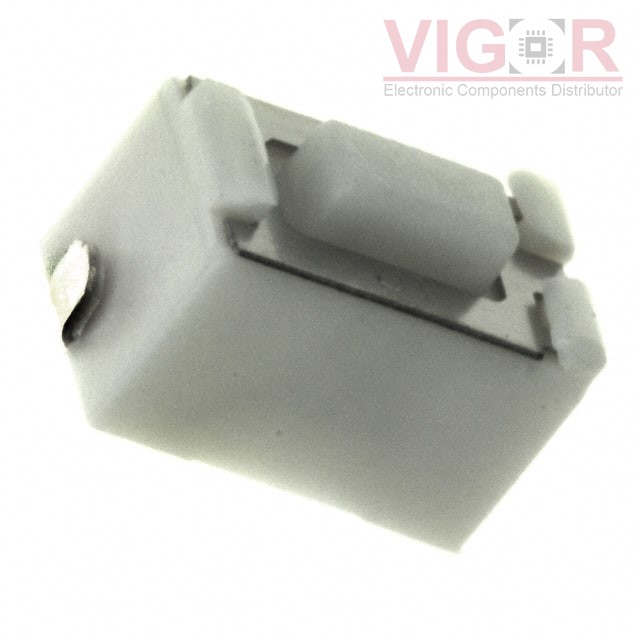

Image is for reference,
please contact us to get the real picture

Part No :

EVQ-PNF05M

Manufacturer
Panasonic
Description
SWITCH TACTILE SPST-NO 0.05A 12V
Catalog
Tactile Switches
Shipped from
HK warehouse
Expected Shipping Date
Jul 17 - Jul 21 2025
DataSheet
EVQ-PNF05M PDF
Availability
47159 pieces
Unit Price
$0.55000

Current price of EVQ-PNF05M is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

EVQ-PNF05M Specifications
Type Description
Series:EVQPN
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Circuit:SPST-NO
Switch Function:Off-Mom
Contact Rating @ Voltage:0.05A @ 12VDC
Actuator Type:Standard
Mounting Type:Surface Mount
Actuator Height off PCB, Vertical:5.00mm
Actuator Length, Right Angle:-
Actuator Orientation:Top Actuated
Termination Style:J Lead
Outline:6.00mm x 3.50mm
Illumination:Non-Illuminated
Illumination Type, Color:-
Illumination Voltage (Nominal):-
Operating Force:160gf
Ingress Protection:-
Features:-
Operating Temperature:-30°C ~ 85°C
