TL3780AF240QG

TL3780AF240QG

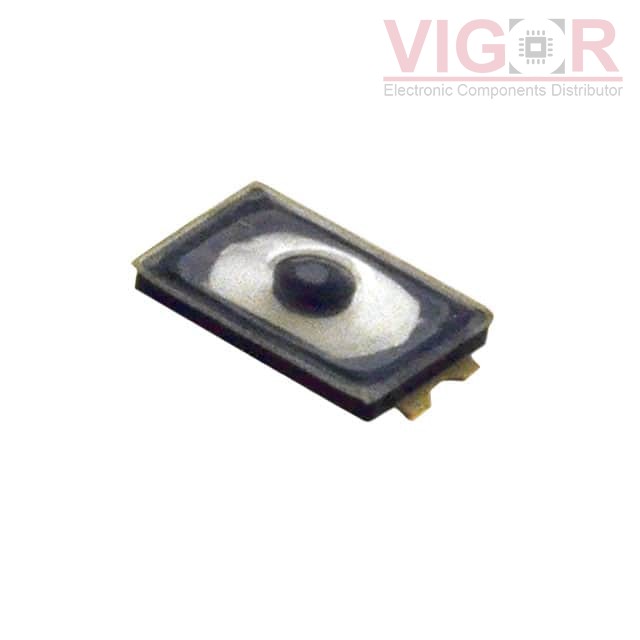

Image is for reference,
please contact us to get the real picture

Part No :

TL3780AF240QG

Manufacturer
E-Switch
Description
SWITCH TACTILE SPST-NO 0.02A 15V
Catalog
Tactile Switches
Shipped from
HK warehouse
Expected Shipping Date
Jul 07 - Jul 11 2025
DataSheet
TL3780AF240QG PDF
Availability
20519 pieces
Unit Price
$0.29000

Current price of TL3780AF240QG is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

TL3780AF240QG Specifications
Type Description
Series:TL3780
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Circuit:SPST-NO
Switch Function:Off-Mom
Contact Rating @ Voltage:0.02A @ 15VDC
Actuator Type:Standard
Mounting Type:Surface Mount
Actuator Height off PCB, Vertical:0.60mm
Actuator Length, Right Angle:-
Actuator Orientation:Top Actuated
Termination Style:Gull Wing
Outline:3.00mm x 2.00mm
Illumination:Non-Illuminated
Illumination Type, Color:-
Illumination Voltage (Nominal):-
Operating Force:240gf
Ingress Protection:-
Features:-
Operating Temperature:-40°C ~ 85°C
