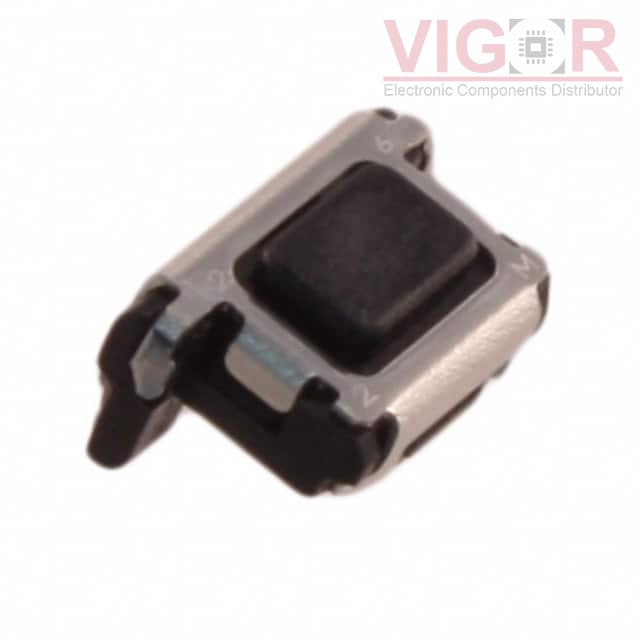

EVP-AEDB2A

Image is for reference,
please contact us to get the real picture

Part No :: EVP-AEDB2A

Manufacturer: Panasonic

Description: SWITCH TACTILE SPST-NO 0.02A 15V

Catalog: Tactile Switches

Shipped from: HK warehouse

Expected Shipping Date: Jul 16 - Jul 20 2025

DataSheet: EVP-AEDB2A PDF

Availability: 279 pieces

Unit Price: ~~$0.93000~~

Current price of EVP-AEDB2A is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

EVP-AEDB2A Specifications

Type	Description
Series:	EVPAE
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Circuit:	SPST-NO
Switch Function:	Off-Mom
Contact Rating @ Voltage:	0.02A @ 15VDC
Actuator Type:	Rectangular Button
Mounting Type:	Edge Mount, Right Angle
Actuator Height off PCB, Vertical:	-
Actuator Length, Right Angle:	1.70mm
Actuator Orientation:	Side Actuated
Termination Style:	SMD (SMT) Tab
Outline:	4.80mm x 2.20mm
Illumination:	Non-Illuminated
Illumination Type, Color:	-
Illumination Voltage (Nominal):	-
Operating Force:	300gf
Ingress Protection:	-
Features:	-
Operating Temperature:	-40°C ~ 85°C

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
