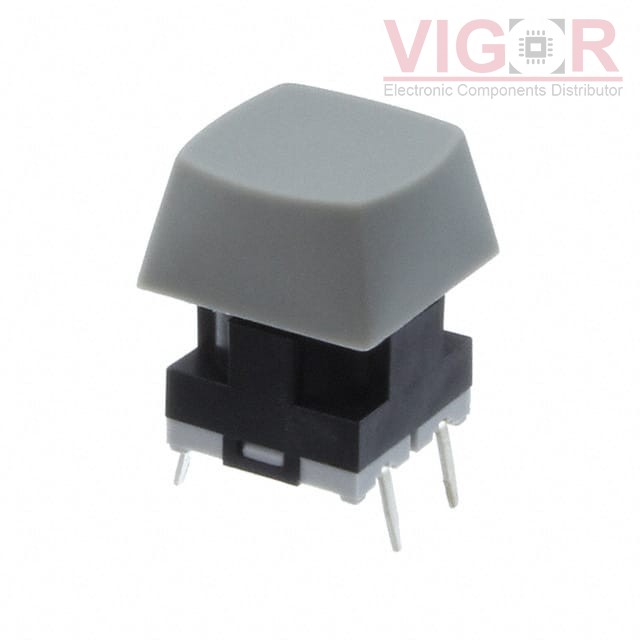

JB15HAP-1H

Image is for reference,
please contact us to get the real picture

Part No :

JB15HAP-1H

Manufacturer
NKK Switches
Description
SWITCH TACT SPST-NO 0.125A 24V
Catalog
Tactile Switches
Shipped from
HK warehouse
Expected Shipping Date
Jul 17 - Jul 21 2025
DataSheet
JB15HAP-1H PDF
Availability
42452 pieces
Unit Price
$3.27000

Current price of JB15HAP-1H is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

Type Description
Series:JB
Package:Tray
Part Status:Active
Circuit:SPST-NO
Switch Function:Off-Mom
Contact Rating @ Voltage:0.125A @ 24VDC
Actuator Type:Square Button
Mounting Type:Through Hole
Actuator Height off PCB, Vertical:14.70mm
Actuator Length, Right Angle:-
Actuator Orientation:Top Actuated
Termination Style:PC Pin
Outline:10.00mm x 10.00mm
Illumination:Non-Illuminated
Illumination Type, Color:-
Illumination Voltage (Nominal):-
Operating Force:265gf
Ingress Protection:IP67 - Dust Tight, Waterproof
Features:Process Sealed
Operating Temperature:-25°C ~ 70°C
