EVQ-PT5A15

EVQ-PT5A15

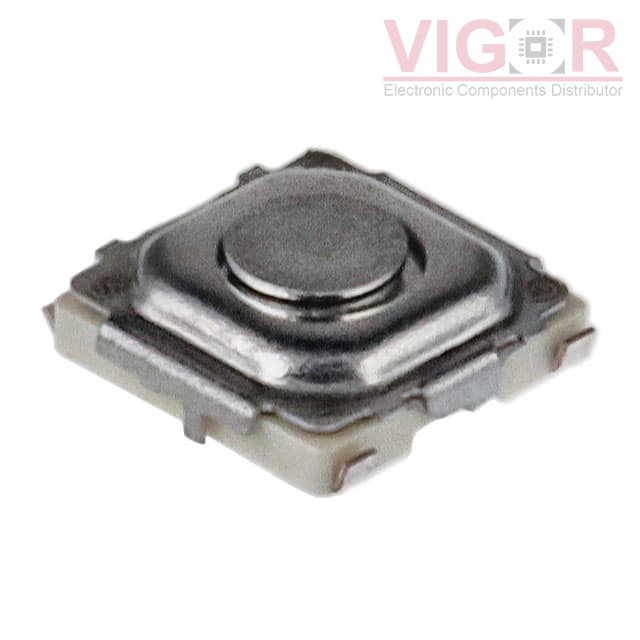

Image is for reference,
please contact us to get the real picture

Part No :

EVQ-PT5A15

Manufacturer
Panasonic
Description
SWITCH TACTILE SPST-NO 0.02A 15V
Catalog
Tactile Switches
Shipped from
HK warehouse
Expected Shipping Date
Jul 22 - Jul 26 2025
DataSheet
EVQ-PT5A15 PDF
Availability
2917 pieces
Unit Price
$0.45000

Current price of EVQ-PT5A15 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

EVQ-PT5A15 Specifications
Type Description
Series:EVQPT
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Circuit:SPST-NO
Switch Function:Off-Mom
Contact Rating @ Voltage:0.02A @ 15VDC
Actuator Type:Standard
Mounting Type:Surface Mount
Actuator Height off PCB, Vertical:1.50mm
Actuator Length, Right Angle:-
Actuator Orientation:Top Actuated
Termination Style:J Lead
Outline:4.90mm x 4.90mm
Illumination:Non-Illuminated
Illumination Type, Color:-
Illumination Voltage (Nominal):-
Operating Force:102gf
Ingress Protection:-
Features:Push Plate
Operating Temperature:-20°C ~ 70°C
